FEATURES
Gigantic in Size

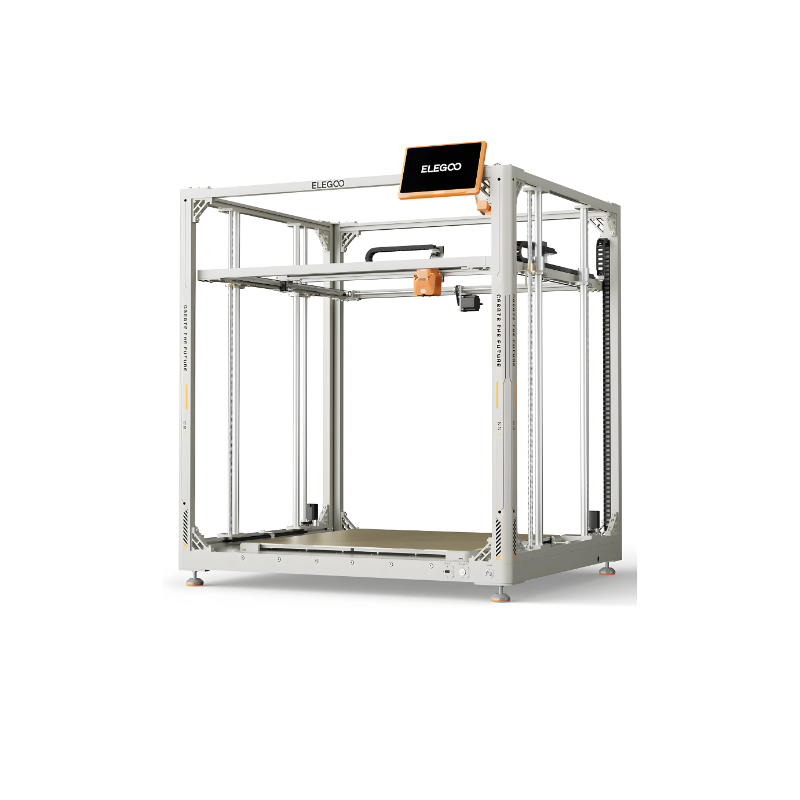

With a build volume of 800 × 800 × 1000 mm, the industrial-grade FDM printer not only meets the user's printing needs for oversized models but also reduces the need to cut models into smaller sections for efficient printing.

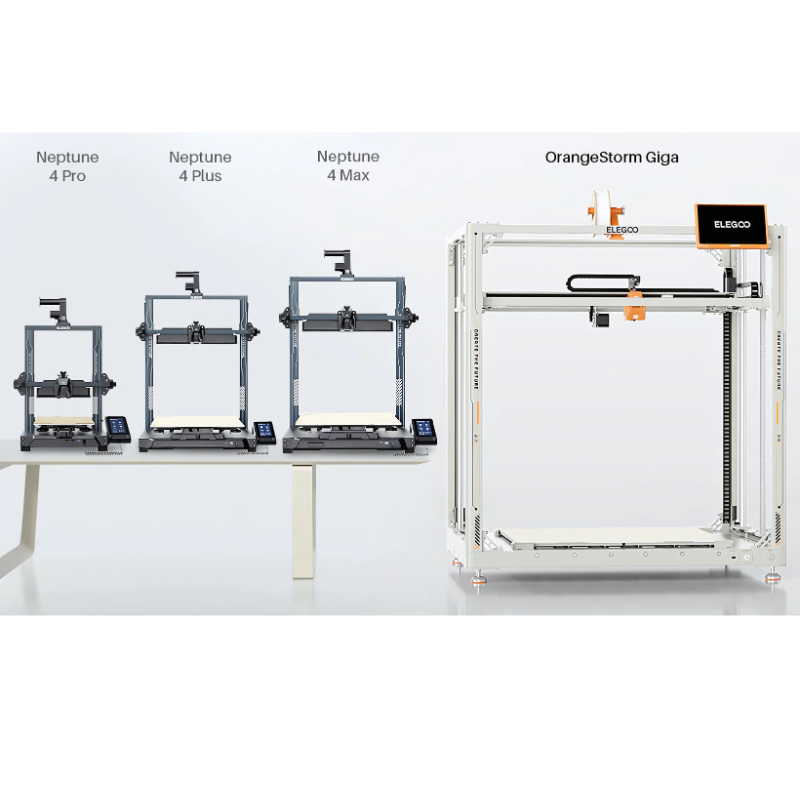

To better understand how large this printer is: Video or 3D Model Mockup of Giga.
Efficient Heated Bed
The heated bed consists of four independent (410 × 410 mm) PEI magnetic high-temperature platforms with a maximum temperature of 100°C.
The four platforms can be heated simultaneously to reach 100°C over the entire area in 17 minutes (ambient temperature: 25℃).
The platform where the model is located can also be automatically recognised and heated independently or manually and independently controlled for increased energy efficiency.
Fast Printing
Utilising a 64-bit 1.5G clock speed quad-core high-performance processor (SOC RK3328), it provides sufficient computing capacity while delivering 6 times the printing speed, with a maximum speed of 300 mm/s (150 mm/s recommended), which is the top-end print speed for printers of its size.

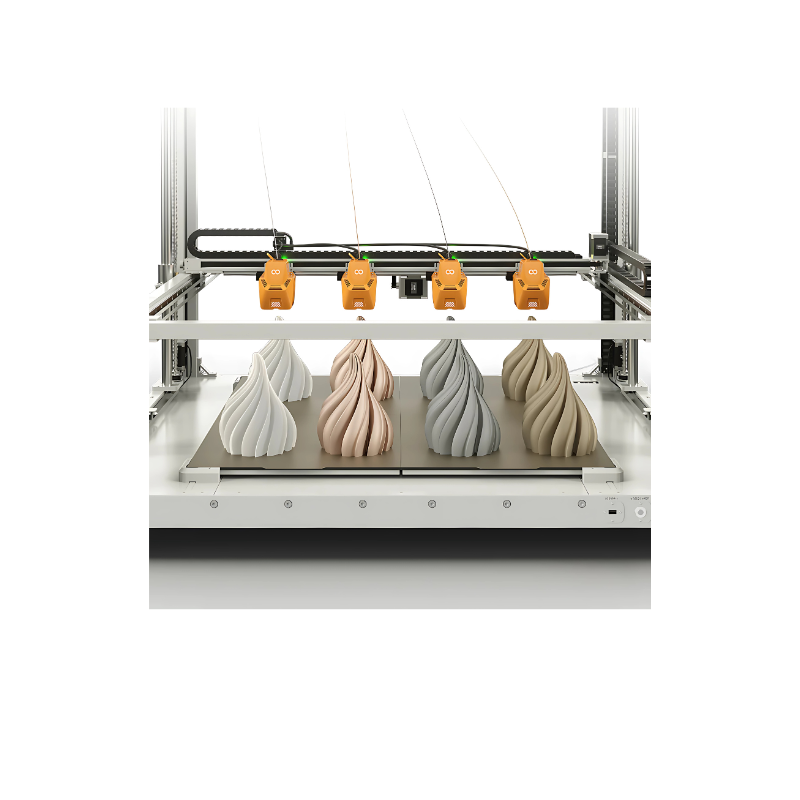

Multi-Nozzle Printing
Three additional printheads can be added to the X-axis to realise simultaneous printing with four nozzles, supporting printing four of the same model, while each nozzle can be equipped with the same material and different coloured filament to achieve four different coloured models of the same kind.
The maximum power requirement is 1,530 W. For each additional printhead, an extra 100 W is needed. Please ensure that your setup can accommodate this total power load.
Powerful Cooling Fans
The upgraded dual-sided cooling system ensures consistent and precise cooling for superior print quality. With intelligent control, the fans automatically stop when printing is complete—saving energy, reducing noise, and extending their lifespan. (Includes two 5015 ball blower fans and one 4010 ball axial fan.)
High-Quality Craftsmanship
Integrated body, elegant yet durable. The X-axis and Y-axis are linear guides, effectively improving printing stability and increasing lifespan. The Z-axis features an upgraded version of the Z-axis rod to make the machine run smoothly and ensure levelling precision. Machine mounts are designed with a carbon steel round base and a round rubber anti-slip pad bottom.
Powerful Extrusion System
OrangeStorm Giga features a high-quality brass nozzle capable of reaching 300°C, ideal for high-temperature materials. The dual-gear direct extruder and titanium heat break ensure consistent filament flow, while the 60 W ceramic heater provides rapid and stable heating.
Equipped with advanced PID auto-calibration and a built-in acceleration sensor, OrangeStorm Giga ensures exceptional print quality by maintaining precise temperature control and reducing vibrations. Create stunning results for all your projects with ease.
Nozzle Diameter (included): 0.6 mm
Nozzle Diameter (optional): 0.4 mm/0.8 mm/1.0 mm
Auto
Levelling
Adopting one-click automatic levelling and a non-contact high-precision sensor to automatically collect 121 points (10 × 10) of platform data to ensure the platform is level.
Caterpillar Cable
Tracks
The cables on the body are stored in caterpillar cable tracks, which prevents the cables from being worn or broken and you don’t have to worry about them affecting your prints.Furthermore, it prevents dust and other debris from entering the cables, ensuring the stability and reliability of the entire system.
Filament Detection &
Power Loss Recovery
No more worrying about being interrupted while printing. When there is a broken filament or no filament, the machine automatically sounds an alarm and pauses printing. Whether it's broken filament, no filament, power outage, or a manual pause in printing, you can resume printing again.
Portable 10.1-inch HD
Capacitive Screen
The 10.1-inch HD capacitive screen can be detached from the body for handheld operation while supporting ELEGOO Cura model preview and switching between eight languages.
User-Friendly
Belt Knobs
The X/Y axis belt is used to transmit the power of the motor and control the movement of the print head on the plane. The knobs' design can easily and accurately control the tightness of the belt to obtain the best printing effect.
Large Spool
Holder
Crafted from high-quality sheet metal, our spool holder can accommodate filament spools up to 5 kg with ease. Its compact and sturdy design ensures that your large-scale printing projects receive reliable and consistent support throughout the printing process.

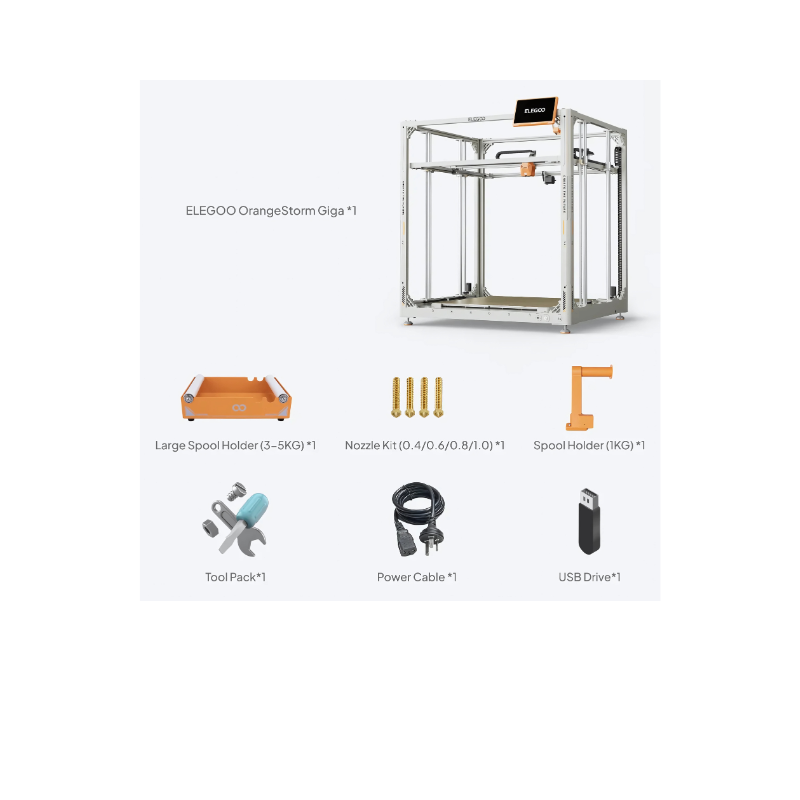

WHAT'S IN THE BOX
Orangestorm Giga
3D Printer
Printhead
Screen
Levelling Plate x 2pcs
Spool Holder Arm
Spool Holder
Filament Breakage
Detector x 2pcs
Z-Axis Caterpillar Cable
Tracks Clip
Z-Axis End Stop
x 2pcs
Filament Guide
Assembly
Detached Spool Holder Assembly (5kg)
Power Cable
Levelling Card
Grease
Profile Corner Bracket
x 8pcs
Tools
Fasteners
User Manual
SPECIFICATION
| Product Model | OrangeStorm Giga |
| Printing Technology | FDM (Fused Deposition Modelling) |
| Frame Material | CNC machined aluminium extrusion |
| Voltage | 100-120 VAC/220-240 VAC, 50/60 Hz 1530 W (single head; +100 W per additional head) |
| File Transfer Method | WI-FI, USB, LAN |
| File Format | STL, OBJ |
| UI Language | English, French, German, Russian, Italian, Spanish, Japanese, Chinese |
| Build Volume | 800 × 800 × 1000 mm |
| Printing Platform Size (PEI Area) | 820 × 820 mm (4 independent 410 × 410 mm PEI plates) |
| Machine Size | 1,224 × 1,164 × 1,425 mm |
| Package Size | Bottom + XY Axis Components: 1,350 × 1,215 × 420 mm Two Z-Axis Components: 1,350 × 1,215 × 350 mm |
| Maximum Size For Machine Activity / MM | 1,224 × 1,520 × 1,570 mm |
| Max. Nozzle Temperature | 300 °C |
| Max. Hot Bed Temperature | 100 °C (ambient temperature: 25 °C) |
| Filament Compatibility | PLA/PETG/TPU |
| Net Weight | 104 kg |
| Gross Weight | 145 kg |
| Resume Printing | Yes |
| Filament Detection | Yes |
|
Max Speed of Tool Head |
300 mm/s |
| Max Acceleration of Tool Head | 5,000 mm/s² |
