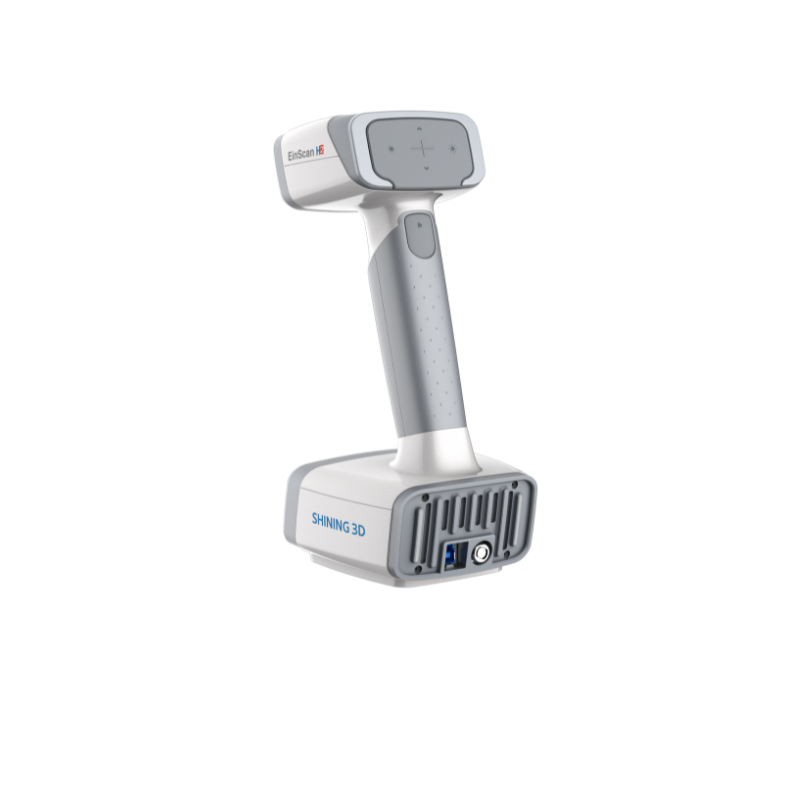

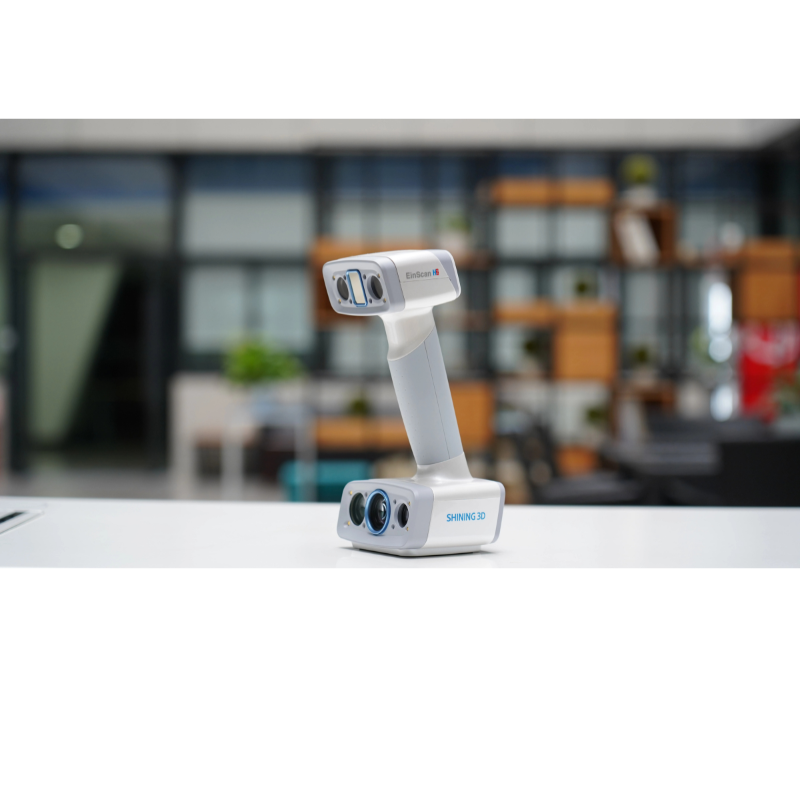

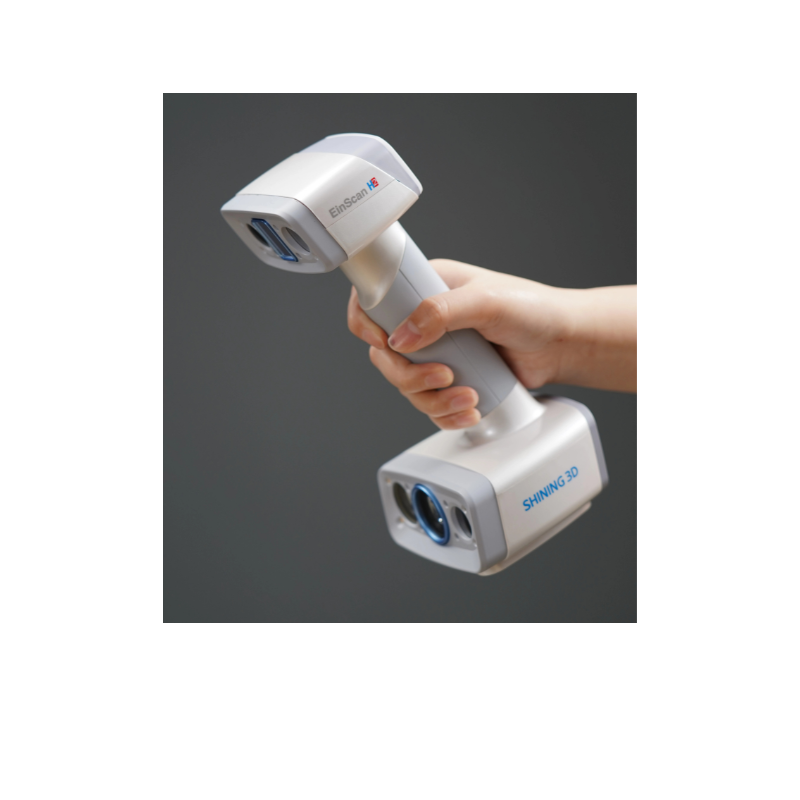

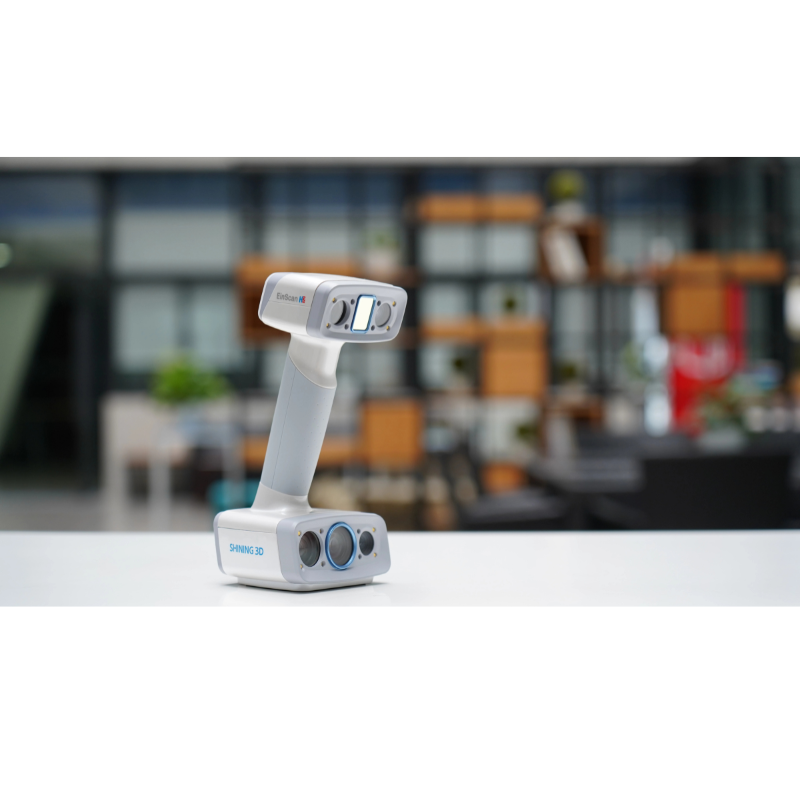

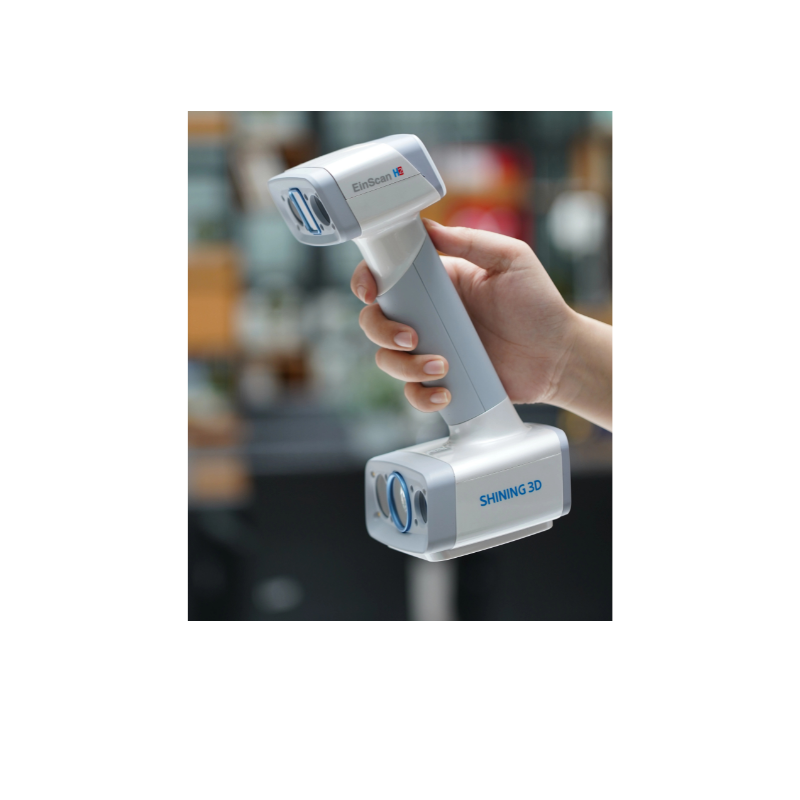

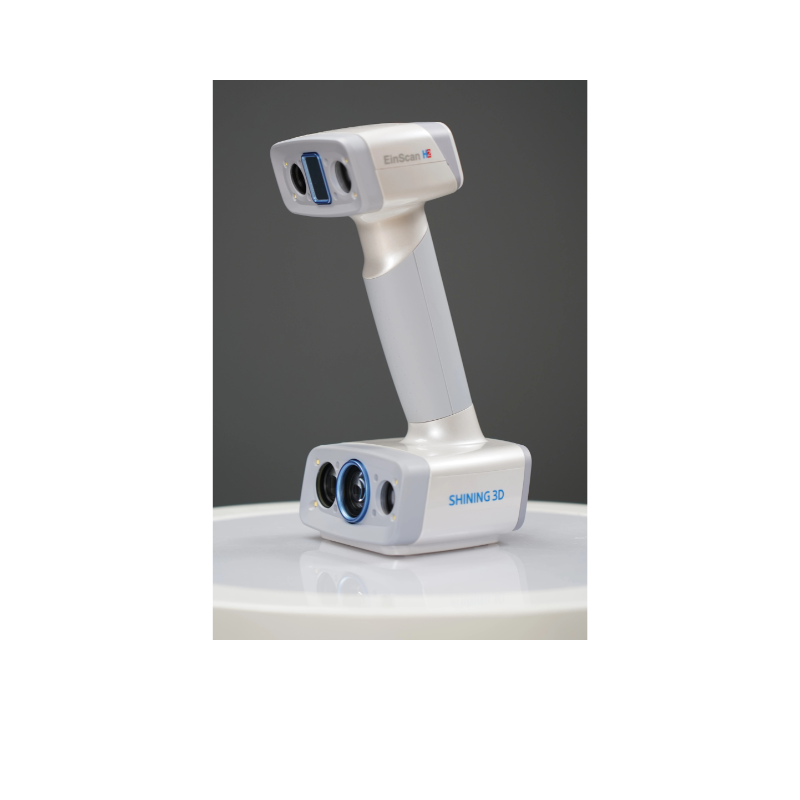

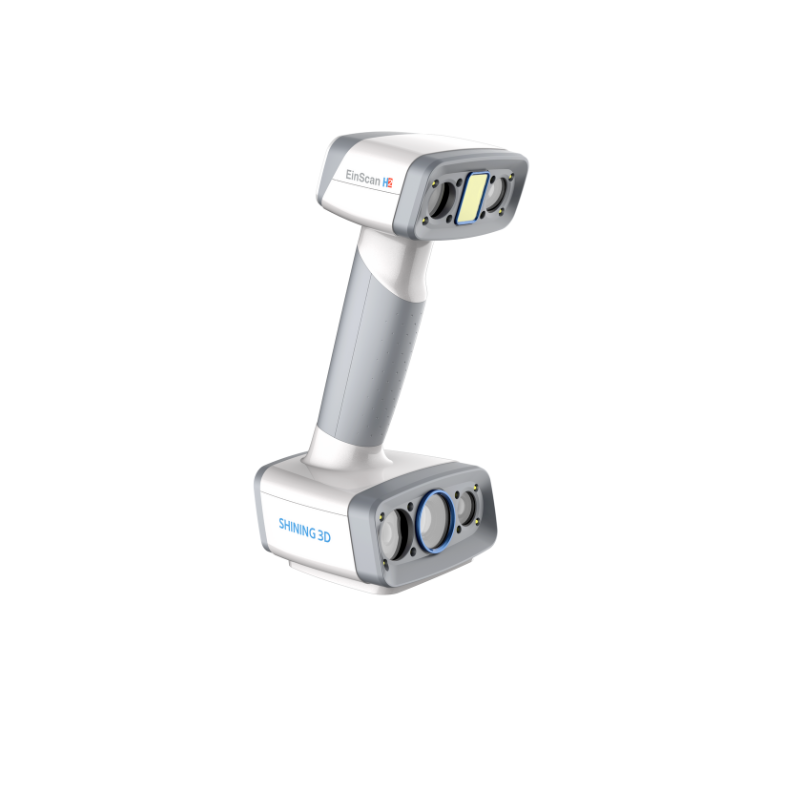

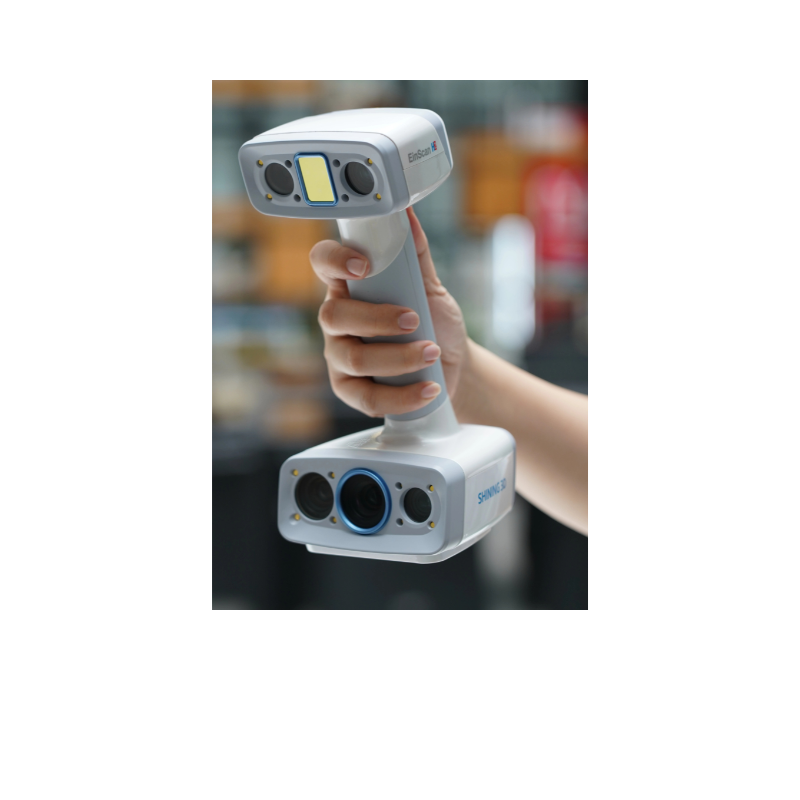

EinScan H2 Handheld 3D Scanner with 5MP Texture Camera and Infrared VCSEL Projectors
EinScan H2
Capture high detail, vibrant colours and improved resolution
with Hybrid LED & Infrared Light scanning
The EinScan H2 improves on its predecessor with a 5MP resolution texture camera, enhanced accuracy, and 3 infrared VCSEL projectors for more photorealistic textures and better quality data.
ETA 7-14 business days on order
A New Benchmark in Colour 3D Scanning
With improved texture camera and accuracy, the EinScan H2 is an excellent option for capturing coloured, detailed objects. It remains one of the best options for 3D body scanning, too, with its dedicated algorithms and flashless infrared technology. Last but not least, having kept the EinScan H’s wide FOV and adjustable working distances, it’s just as ideal for 3D scanning large objects
Major Updates
- 5MP texture camera
- 3 VCSEL projectors
- Accuracy up to 0.05mm
- Ultra-wide FOV and adjustable working distance
What's New in EinScan H2?
- Richer, brighter colours: The EinScan H2 is equipped with a 5MP camera offering crisper, more pristine colours. 3D models look even more realistic than before, with a higher level of detail.

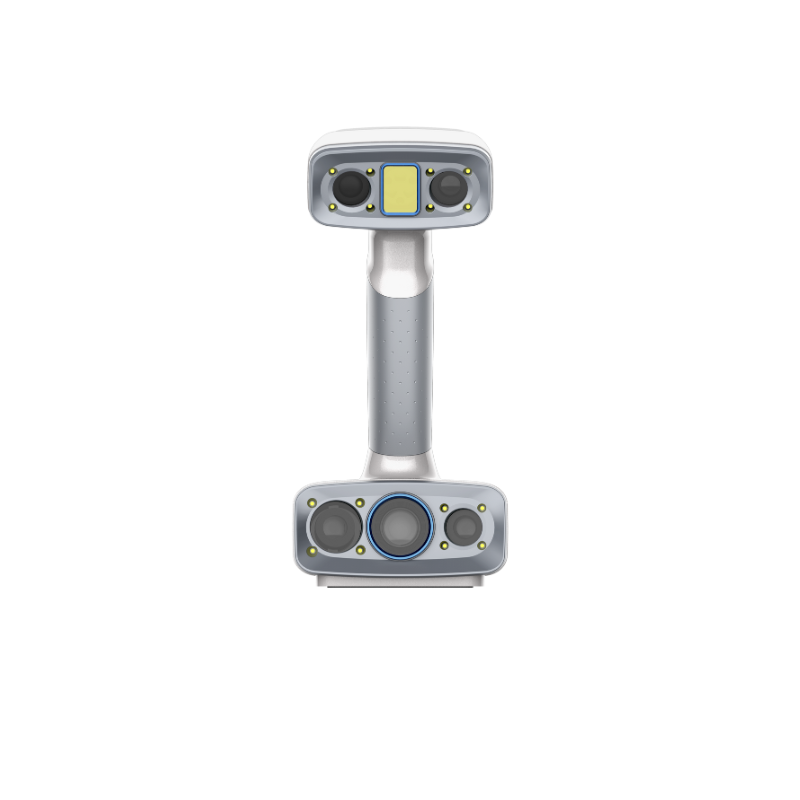

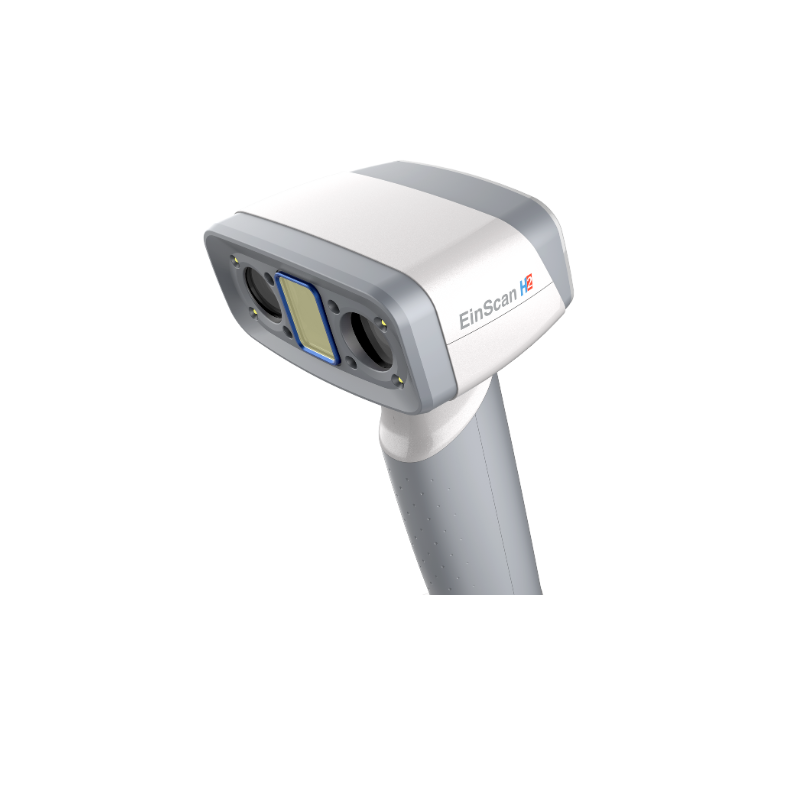

- One, two, three VCSEL projectors: It now integrates not one but three VCSEL projectors that work together to acquire dark surfaces more efficiently and adapt better to different lighting conditions.
- Heightened accuracy and resolution: Thanks to the extra VCSEL projectors, the EinScan H2’s infrared mode delivers accuracy up to 0.1mm (0.05mm in white light mode). It also offers a better maximum resolution of 0.2mm instead of 0.25mm.
- Adjustable working distance: The working distance is now unlocked and ready to adapt to objects and scenes of all sizes. In infrared mode, the distance can be manually set anywhere from 200mm to 1500mm.
- New hair capture algorithm: A new “hair enhancement mode” helps easily capture both light and dark hair. This is an exciting addition to SHINING 3D’s “non-rigid” feature with auto-compensation for slight movements.
Key Features
Photorealistic Texture
Captures rich, bright colours and clean textures for photorealistic 3D models.
* EinScan H2 scanned data
Optimised for Face and Body 3D Scanning
Flashless infrared technology: Ensures optimal comfort during face and body 3D scanning.
Advanced hair enhancement algorithm: Designed to successfully capture light and dark hair.
Non-rigid algorithm in IR Mode: Captures 3D body data quickly and seamlessly, with auto-compensation of slight movements to eliminate misalignment risks.
Superior Environmental Adaptability
Provide superior material and lighting adaptability, effortlessly handling various surface types and scanning environments.
Hybrid Light Source
Dual Light source improves scanning efficiency.
LED light offers fast 3D scanning with accurate, high-quality data.
Infrared VCSEL is ideal for capturing dark surfaces, for human body scanning, and for bright-lit environments.
Ultra-wide FOV and Adjustable Working Distance
Adjustable working distance : Enables working distance adjustment from 200mm to 1500mm, to adapt to narrow or wide scenes and objects of various sizes.
FOV (Field of View) up to 780mm x 900mm : Offers flexibility in scanning volume to capture large-sized objects quickly.
Marker-free scanning : Scans rich geometric features without the hassle of markers.
Remarkable Scanning Software
Delivers a professional yet easy-to-use 3D scanning interface with automated processing, intuitive UI design, and intelligent data quality indicators.
Open for Everybody: Our SDK – Your Software
The EinScan H2 scanning SDK is available and open for customisation! Integrate our powerful scanning and data processing into your own software or app.
FootStation 2 Add-on
The newly developed FootStation 2 accelerates and simplifies foot scanning by capturing instep and sole data simultaneously using a mirror, saving time with automatic alignment.
It suits application in foot orthopaedics and the customised footwear industry.
Specifications
Hybrid Alignment, Texture Alignment
Graphics card: NVIDIA GTX/RTX (RTX2060 or better);
Video memory: ≥6G;
Processor: i7-8700;
Memory: ≥16GB
What's in the box
- EinScan H2
- Power Adapter
- Power Cable
- Calibration board
- Calibration board support
- USB drive
Multiple Applications
With its 2-in-1 technology, ergonomic design, and excellent software algorithms, the EinScan H2 is a versatile solution fit for many use cases. Use it anywhere, any time, for prosthetics, virtual display, cultural preservation, digital art,custom-fit clothing, education, furniture design, and much more.
