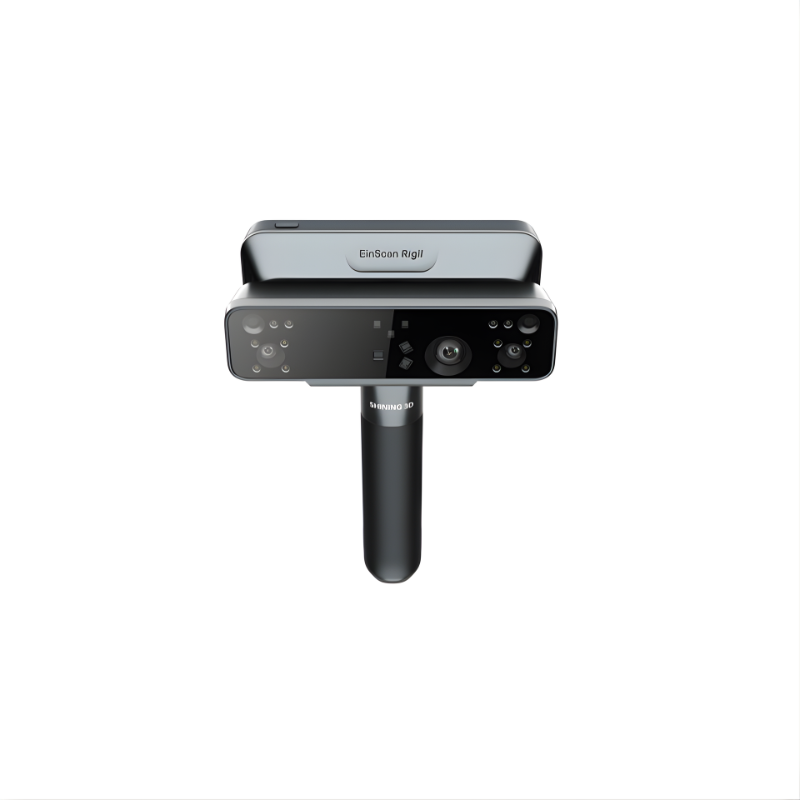

shining 3d einscan rigil laser scanner from front view

EinScan Rigil Wireless Laser Scanner with Built-In Computing and Hybrid Light

by Shining 3D
$7,699.00

Notify me when back in stock

EinScan Rigil

The Tri-Mode Laser 3D Scanner

EinScan Rigil is the world’s first Tri-Mode 3D scanner with built-in computing, wireless solution and hybrid light technology. EinScan Rigil offers a fully integrated 3D scanning wireless workflow with triple work modes that effectively eliminates the traditional compromise between computing power and flexibility.

  • Triple Work Modes: Standalone & Wireless PC & Wired PC
  • Hybrid Light Source: Blue Laser + IR VCSEL
  • Marker-Free Laser Scanning
  • Fully Wireless Workflow

BROCHURE

Key Features

Wireless
Built-In Computing
Hybrid Light
Marker-Free Laser Scanning
5MP Full Colour Laser Scanning
1T SSD ROM
High Resolution
High Accuracy
High Speed Scanning

Laser HD Mode

Provides high-quality models with 0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05mm.

  • 19 + 19 crossed laser lines: for high speed scanning, delivers top-tier efficiency and flexibility.
  • 7 parallel laser lines: for fine details, provides consistent results.

Two Scanners in One

With two dedicated camera and projector groups, EinScan Rigil adapts perfectly to both laser and infrared light. This ensures accurate data capture and reliable performance, even in challenging lighting conditions.

Marker-Free Laser Scanning, Even Outdoors

EinScan Rigil’s advanced tracking algorithm enables marker-free blue laser scanning—more efficient than traditional marker-based scanning and more accurate than IR-only scanning. Both blue laser and infrared VCSEL are designed to perform reliably even in bright sunlight.

Triple Work Modes

The EinScan Rigil offers three operation modes to unlock max performance and flexibility

  • Standalone Mode: No PC connection required, all scanning and processing tasks are completed directly on the hardware.
  • Wireless PC Mode: Leveraging built-in Wi-Fi 6, enables seamless wireless scanning and allows connection to a powerful computer, optimising performance for complex tasks and large data volumes.

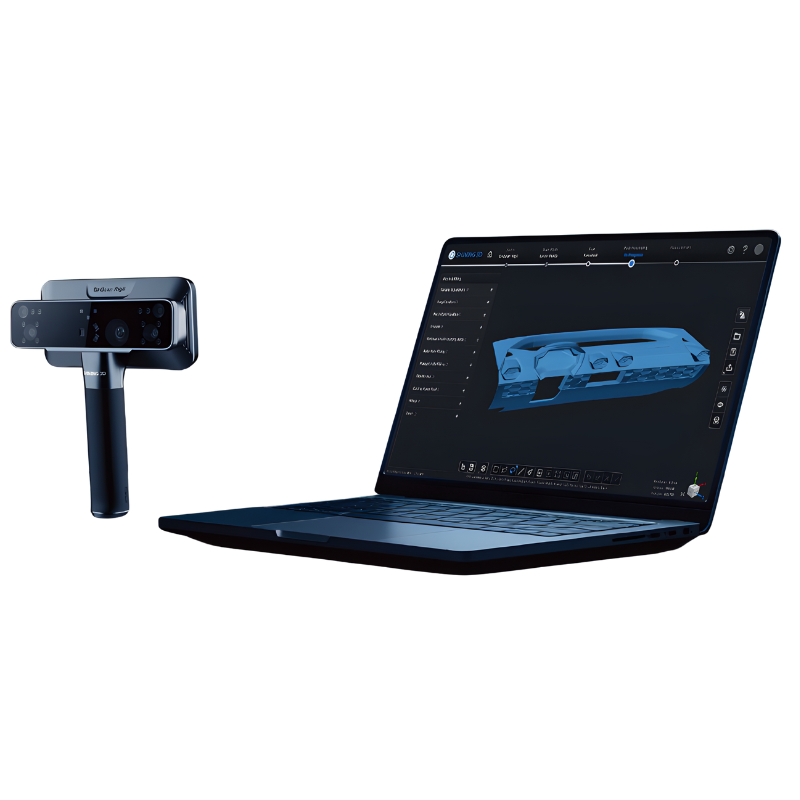

  • Wired PC Mode: Maintaining availability, maximum scanning speed, and data volume in complex network environments.

Hybrid Light Source

2 separate groups of cameras are specifically designed to capture different light sources respectively.

  • Blue laser lines
  • VCSEL infrared

IR Rapid Mode

VCSEL Infrared-powered scanning solution for high efficiency and wide coverage of medium to large objects.

  • Volumetric accuracy up to 0.1 + 0.3 mm/m
  • Working distance 160 ~ 1500 mm.
  • Scanning speed up to 1,600,000 points/s

Full Colour Texture Scanning

Equipped with a 5MP high-definition camera that can restore high-quality texture details, allowing designers, engineers, and artists to maintain a high fidelity of the model during the digitisation process, providing more precise information for subsequent analysis and creation.

Wireless Workflow

  • Wireless scanning: Without connecting to PC

  • Wireless transfer: Data sharing to SHINING 3D Cloud

  • Wireless screen casting: Display on a second screen

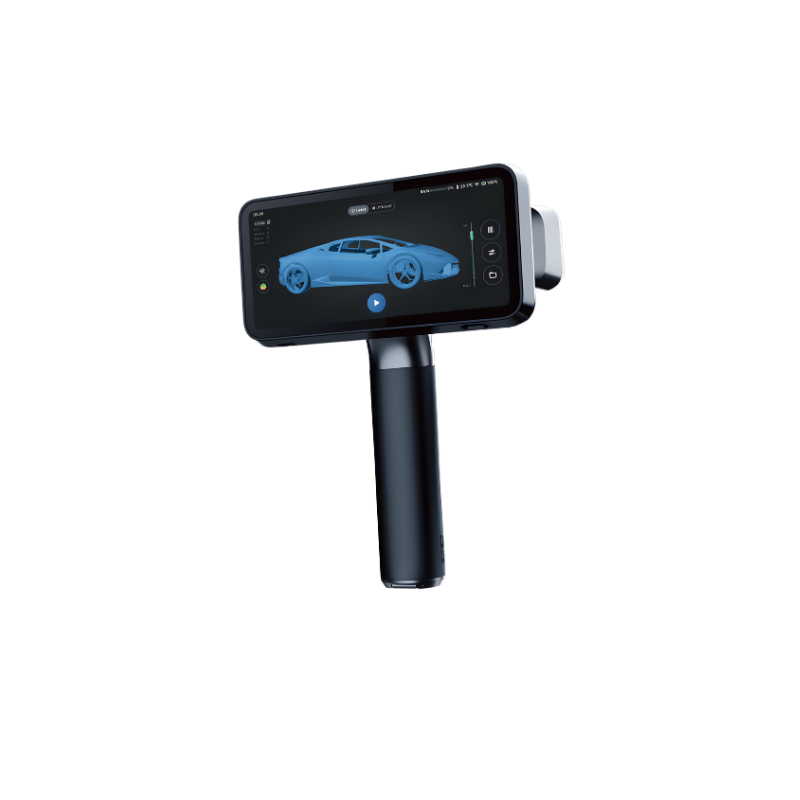

Powerful Hardware

  • 6.4'' 2K AMOLED
  • 32GB DDR5 RAM
  • 32GB eMMC + 1TB SSD ROM
  • 5500mAh × 2 Replaceable Batteries

Technical Specifications

Work Mode
Wireless Standalone
For extra computing resource: PC- Wireless / PC-Wired
Scan Mode
Laser HD
IR Rapid
Light Source
19 crossed laser lines
7 blue laser parallel lines
IR VCSEL
Resolution
0.05 ~ 10 mm
0.2 ~ 10 mm
Scanning Speed
4,400,000 points/s
940,000 points/s
1,600,000 points/s
Working Distance
170 ~ 550 mm
160 ~ 1500 mm
Alignment Mode
Global Markers / Markers / Features / Hybrid
Global Markers / Markers / Features / Texture / Hybrid
Volumetric Accuracy
Up to 0.04 + 0.06 mm/m
Up to 0.1 + 0.3 mm/m
Camera Resolution
3D: 2.3MP*2 1.3MP*2; Texture: 5MP
Output Formats
STL, OBJ, PLY, 3MF, ASC
Laser Class
Class II
/
Hardware
CPU: 8 core, 2.4GHz; Hard Drive: 1T SSD ROM;
32GB DDR5 RAM; 6.4”2K AMOLED Touch Screen
Operation Conditions
Temperature -10℃ ~ 40℃
Certifications
CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
Recommended Configurations for PC
Win10/11, 64 bit; Graphics card: NVIDIA GTX1060;
Video memory: ≥6GB; Processor: I7- 11800H; Memory: ≥32GB
Interface & Power Source
USB Type-C Battery: 6000mA*2; Support 60W-PD3.0 Charger
Dimension
(H*D*W) 233 × 180 × 72.8 mm
Net Weight
870 g (batteries included)

Applications

Automotive Aftermarket & Engineering

EinScan Rigil is the first truly universal 3D scanner engineered to meet the diverse demands of the automotive modification industry. It significantly enhances efficiency in generating high-quality 3D models. The All-In-One design with cable-free, size-free experience and strong materials adaptability, makes EinScan Rigil capable of scanning anytime anywhere. For users requiring faster speed or finer details, EinScan Rigil can also support PC mode with wireless or wired connection for advanced performance.

Cultural Creation & Art Customisation

EinScan Rigil's flexibility can explore more scenarios and it is equipped with blue laser source and a 5MP high-definition camera that can restore high-quality geometric and texture details, allowing designers, engineers and artists to maintain a high fidelity of model during the 3D digitisation process, providing more precise information for subsequent analysis and creation.

Research & Education

EinScan Rigil is equipped with two different light sources: blue laser and infrared, which can meet the scanning requirements of various materials. It widely covers educational and research needs in different fields. The wireless all-in-one design and user-friendly interface make it more suitable for beginners to learn. Its portability also supports business trips and field research where carrying a large number of computer cables is not feasible. Moreover, it can be operated and demonstrated via wireless screen mirroring, enhancing its commercial value.

EinScan Rigil APP

EinScan Rigil App supports full scanning workflows on the device from calibration, scanning, data modification, closed surface generation, model editing, to export and sharing.

Global Marker Alignment
Multiple Types of Marker Supported 3/6/12 mm
Auto Detecting Plane
Data Quality Indicator
Scan Rewind
Resume Edited Data Scanning
X-Y-Z System Alignment
Model Measurement

EXScan Rigil Software

EXScan Rigil is a dedicated PC software for the full spectrum of advanced professional scanning workflows, which provides rich post-processing and mesh editing functions for model cleanup and better integration to 3D design workflow

Cutting Plane Tool
The Cutting Plane Tool lets you easily cut and clean up 3D models by drawing a line, automatically repairing the mesh and aligning coordinates as needed.
Mirror
The Mirror tool quickly makes a symmetrical copy of your 3D mesh for efficient design, repair, or reverse engineering.
Flip Normal
The Flip Normal tool corrects inverted surfaces so 3D models display properly.
Remove Small Floating Parts
This tool automatically removes small noise fragments from scan data, making mesh cleanup easy for 3D printing or reverse engineering.

Compatible Software

EXModel
for Reverse Engineering
BlueStar Mapping
for Texture Mapping
Description

EinScan Rigil

The Tri-Mode Laser 3D Scanner

EinScan Rigil is the world’s first Tri-Mode 3D scanner with built-in computing, wireless solution and hybrid light technology. EinScan Rigil offers a fully integrated 3D scanning wireless workflow with triple work modes that effectively eliminates the traditional compromise between computing power and flexibility.
  • Triple Work Modes: Standalone & Wireless PC & Wired PC
  • Hybrid Light Source: Blue Laser + IR VCSEL
  • Marker-Free Laser Scanning
  • Fully Wireless Workflow

BROCHURE

 

Key Features

 Wireless Built-In Computing Hybrid Light Marker-Free Laser Scanning 5MP Full Colour Laser Scanning 1T SSD ROM High Resolution High Accuracy High Speed Scanning

Laser HD Mode

Provides high-quality models with 0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05mm.

  • 19 + 19 crossed laser lines: for high speed scanning, delivers top-tier efficiency and flexibility.
  • 7 parallel laser lines: for fine details, provides consistent results.

Two Scanners in One

With two dedicated camera and projector groups, EinScan Rigil adapts perfectly to both laser and infrared light. This ensures accurate data capture and reliable performance, even in challenging lighting conditions.

Marker-Free Laser Scanning, Even Outdoors

EinScan Rigil’s advanced tracking algorithm enables marker-free blue laser scanning—more efficient than traditional marker-based scanning and more accurate than IR-only scanning. Both blue laser and infrared VCSEL are designed to perform reliably even in bright sunlight.

Triple Work Modes

The EinScan Rigil offers three operation modes to unlock max performance and flexibility

  • Standalone Mode: No PC connection required, all scanning and processing tasks are completed directly on the hardware.
  • Wireless PC Mode: Leveraging built-in Wi-Fi 6, enables seamless wireless scanning and allows connection to a powerful computer, optimising performance for complex tasks and large data volumes.
  • Wired PC Mode: Maintaining availability, maximum scanning speed, and data volume in complex network environments.

Hybrid Light Source

2 separate groups of cameras are specifically designed to capture different light sources respectively.

  • Blue laser lines
  • VCSEL infrared

IR Rapid Mode

VCSEL Infrared-powered scanning solution for high efficiency and wide coverage of medium to large objects.

  • Volumetric accuracy up to 0.1 + 0.3 mm/m
  • Working distance 160 ~ 1500 mm.
  • Scanning speed up to 1,600,000 points/s

Full Colour Texture Scanning

Equipped with a 5MP high-definition camera that can restore high-quality texture details, allowing designers, engineers, and artists to maintain a high fidelity of the model during the digitisation process, providing more precise information for subsequent analysis and creation.

Wireless Workflow

  • Wireless scanning: Without connecting to PC

  • Wireless transfer: Data sharing to SHINING 3D Cloud

  • Wireless screen casting: Display on a second screen

Powerful Hardware

  • 6.4'' 2K AMOLED
  • 32GB DDR5 RAM
  • 32GB eMMC + 1TB SSD ROM
  • 5500mAh × 2 Replaceable Batteries

 

Technical Specifications

 Work Mode Wireless Standalone
For extra computing resource: PC- Wireless / PC-Wired Scan Mode Laser HD IR Rapid Light Source 19 crossed laser lines 7 blue laser parallel lines IR VCSEL Resolution 0.05 ~ 10 mm 0.2 ~ 10 mm Scanning Speed 4,400,000 points/s 940,000 points/s 1,600,000 points/s Working Distance 170 ~ 550 mm 160 ~ 1500 mm Alignment Mode Global Markers / Markers / Features / Hybrid Global Markers / Markers / Features / Texture / Hybrid Volumetric Accuracy Up to 0.04 + 0.06 mm/m Up to 0.1 + 0.3 mm/m Camera Resolution 3D: 2.3MP*2 1.3MP*2; Texture: 5MP Output Formats STL, OBJ, PLY, 3MF, ASC Laser Class Class II / Hardware CPU: 8 core, 2.4GHz; Hard Drive: 1T SSD ROM;
32GB DDR5 RAM; 6.4”2K AMOLED Touch Screen Operation Conditions Temperature -10℃ ~ 40℃ Certifications CE, FCC, ROHS, WEEE, FDA, SRRC, IP50 Recommended Configurations for PC Win10/11, 64 bit; Graphics card: NVIDIA GTX1060;
Video memory: ≥6GB; Processor: I7- 11800H; Memory: ≥32GB Interface & Power Source USB Type-C Battery: 6000mA*2; Support 60W-PD3.0 Charger Dimension (H*D*W) 233 × 180 × 72.8 mm Net Weight 870 g (batteries included)

Applications
Automotive Aftermarket & Engineering

EinScan Rigil is the first truly universal 3D scanner engineered to meet the diverse demands of the automotive modification industry. It significantly enhances efficiency in generating high-quality 3D models. The All-In-One design with cable-free, size-free experience and strong materials adaptability, makes EinScan Rigil capable of scanning anytime anywhere. For users requiring faster speed or finer details, EinScan Rigil can also support PC mode with wireless or wired connection for advanced performance.

Cultural Creation & Art Customisation

EinScan Rigil's flexibility can explore more scenarios and it is equipped with blue laser source and a 5MP high-definition camera that can restore high-quality geometric and texture details, allowing designers, engineers and artists to maintain a high fidelity of model during the 3D digitisation process, providing more precise information for subsequent analysis and creation.

Research & Education

EinScan Rigil is equipped with two different light sources: blue laser and infrared, which can meet the scanning requirements of various materials. It widely covers educational and research needs in different fields. The wireless all-in-one design and user-friendly interface make it more suitable for beginners to learn. Its portability also supports business trips and field research where carrying a large number of computer cables is not feasible. Moreover, it can be operated and demonstrated via wireless screen mirroring, enhancing its commercial value.

EinScan Rigil APP

EinScan Rigil App supports full scanning workflows on the device from calibration, scanning, data modification, closed surface generation, model editing, to export and sharing.

 Global Marker Alignment Multiple Types of Marker Supported 3/6/12 mm Auto Detecting Plane Data Quality Indicator Scan Rewind Resume Edited Data Scanning X-Y-Z System Alignment Model Measurement

EXScan Rigil Software

EXScan Rigil is a dedicated PC software for the full spectrum of advanced professional scanning workflows, which provides rich post-processing and mesh editing functions for model cleanup and better integration to 3D design workflow

 Cutting Plane Tool The Cutting Plane Tool lets you easily cut and clean up 3D models by drawing a line, automatically repairing the mesh and aligning coordinates as needed. Mirror The Mirror tool quickly makes a symmetrical copy of your 3D mesh for efficient design, repair, or reverse engineering. Flip Normal The Flip Normal tool corrects inverted surfaces so 3D models display properly. Remove Small Floating Parts This tool automatically removes small noise fragments from scan data, making mesh cleanup easy for 3D printing or reverse engineering.

Compatible Software

 EXModel
for Reverse Engineering BlueStar Mapping
for Texture Mapping
