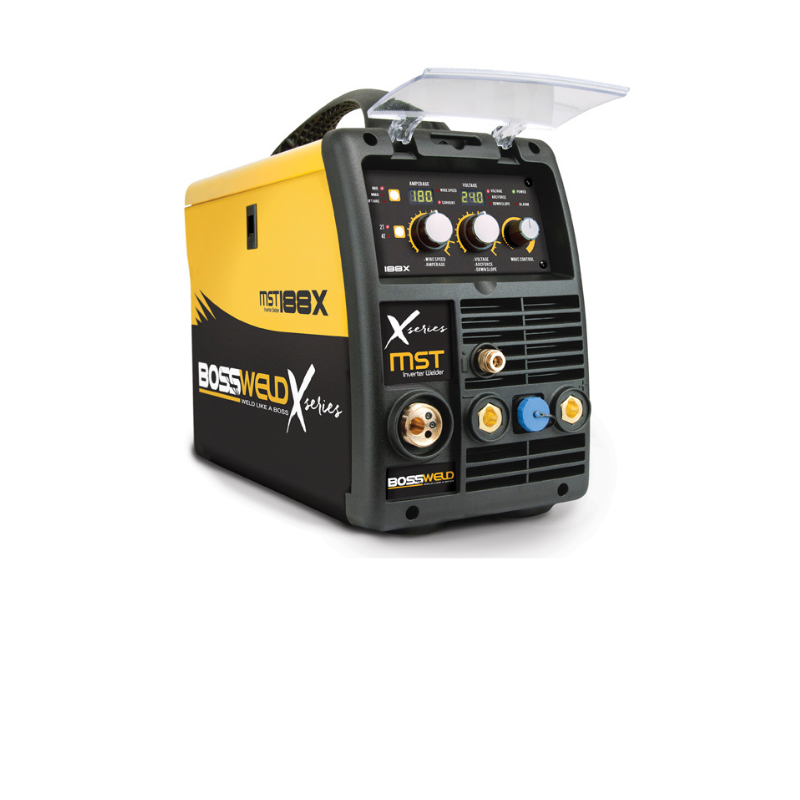

bossweld mst 188x inverter welder from front left side view with a clear plastic cover over the control panel

Bossweld X-Series MST 188X 240V MIG/STICK/TIG Inverter Welder with 9kVA Generator

by Bossweld
$945.00

Notify me when back in stock

The Bossweld MST 188X is the latest in IGBT multipurpose welder technology; this very portable power source enables the user to complete high-quality welds in both MIG - TIG - MMA/stick electrode applications.

MIG


  • Simple to learn
  • MIG wire is fed through the gun to create the weld pool
  • Gas or flux prevents oxidation in the weld
  • Weld with or without gas
  • Point and pull the trigger
  • Great for maintenance, small projects & automotive repairs

METAL TYPES

Mild steel, stainless steel & aluminium



STICK

  • Easiest process to learn
  • Best choice for quick repairs
  • Slower than MIG welding
  • Forgiving in dirty/rusty environments
  • Not recommended for thin sheet metal welding

METAL TYPES

Mild steel, stainless steel & cast iron



TIG

  • Gives a better weld finish
  • Accurate heat control
  • Considered the most challenging process to learn
  • Good way to weld thin material
  • Argon gas is required

METAL TYPES

Mild steel & stainless steel

The Bossweld MST 188X is a lightweight, easy to set up, and easy to use and will provide very smooth output, making it the ideal choice for your next welding project.


KEY FEATURES





  • 180 Amp output
  • Multiprocess - MIG /Stick /TIG welder
  • Fitted 10 Amp plug
  • Digital LED display
  • DC TIG lift arc start
  • Excellent arc stability
  • Gas/gasless operation
  • 2T / 4T trigger latching
  • Stepless amperage control
  • Generator safe
  • Suits 1 kg (D100)/ 5 kg (D200) spools
  • Spool gun ready
  • 3 Year warranty



SPECIFICATIONS



Primary
Input power 		Single Phase
240V 50-60
HZ +/-15%
Duty Cycle
@ 40˚C 		MIG/TIG/MMA
10% @ 180A
Open
Circuit
Voltage 		MIG 58.5V
Output
Current Range 		MIG
40-180Amps
MMA / TIG
10-180Amps
I Max MIG 37.5A
TIG 29.5A
MMA 44A
I eff MIG/MMA
10A
TIG 9.5A
Protection/
Insulation
Class 		IP21 / H
Wire
Diameter
Range 		0.6mm
to
1.0mm
Electrode
Diameter
Range 		1.6mm
to
3.2mm
Thermal
Overload 		Yes
Minimum
KVA 		9
Dimensions/
Weight 		55x39.5x21.4cm
/ 12.5kg





SPECIFICATIONS

MANUAL

TORCH SPARES





STANDARD INCLUSIONS

  1. BOSSWELD MST 188X Inverter DC MIG Welder
  2. 3 metre 15 Series MIG Torch
  3. Welding cable with electrode holder
  4. Earth cable with earth clamp
  5. Gas Hose
  6. Dual Stage Argon Regulator
  7. Torch Spares
  8. Drive Rollers (spare – not shown)
  9. Operating Manual (not shown)




Description

The Bossweld MST 188X is the latest in IGBT multipurpose welder technology; this very portable power source enables the user to complete high-quality welds in both MIG - TIG - MMA/stick electrode applications.

MIG
  • Simple to learn
  • MIG wire is fed through the gun to create the weld pool
  • Gas or flux prevents oxidation in the weld
  • Weld with or without gas
  • Point and pull the trigger
  • Great for maintenance, small projects & automotive repairs

METAL TYPES

Mild steel, stainless steel & aluminium



STICK

  • Easiest process to learn
  • Best choice for quick repairs
  • Slower than MIG welding
  • Forgiving in dirty/rusty environments
  • Not recommended for thin sheet metal welding

METAL TYPES

Mild steel, stainless steel & cast iron



TIG

  • Gives a better weld finish
  • Accurate heat control
  • Considered the most challenging process to learn
  • Good way to weld thin material
  • Argon gas is required

METAL TYPES

Mild steel & stainless steel

The Bossweld MST 188X is a lightweight, easy to set up, and easy to use and will provide very smooth output, making it the ideal choice for your next welding project.


KEY FEATURES





  • 180 Amp output
  • Multiprocess - MIG /Stick /TIG welder
  • Fitted 10 Amp plug
  • Digital LED display
  • DC TIG lift arc start
  • Excellent arc stability
  • Gas/gasless operation
  • 2T / 4T trigger latching
  • Stepless amperage control
  • Generator safe
  • Suits 1 kg (D100)/ 5 kg (D200) spools
  • Spool gun ready
  • 3 Year warranty



SPECIFICATIONS



Primary
Input power 		Single Phase
240V 50-60
HZ +/-15%
Duty Cycle
@ 40˚C 		MIG/TIG/MMA
10% @ 180A
Open
Circuit
Voltage 		MIG 58.5V
Output
Current Range 		MIG
40-180Amps
MMA / TIG
10-180Amps
I Max MIG 37.5A
TIG 29.5A
MMA 44A
I eff MIG/MMA
10A
TIG 9.5A
Protection/
Insulation
Class 		IP21 / H
Wire
Diameter
Range 		0.6mm
to
1.0mm
Electrode
Diameter
Range 		1.6mm
to
3.2mm
Thermal
Overload 		Yes
Minimum
KVA 		9
Dimensions/
Weight 		55x39.5x21.4cm
/ 12.5kg





SPECIFICATIONS

MANUAL

TORCH SPARES





STANDARD INCLUSIONS

  1. BOSSWELD MST 188X Inverter DC MIG Welder
  2. 3 metre 15 Series MIG Torch
  3. Welding cable with electrode holder
  4. Earth cable with earth clamp
  5. Gas Hose
  6. Dual Stage Argon Regulator
  7. Torch Spares
  8. Drive Rollers (spare – not shown)
  9. Operating Manual (not shown)
