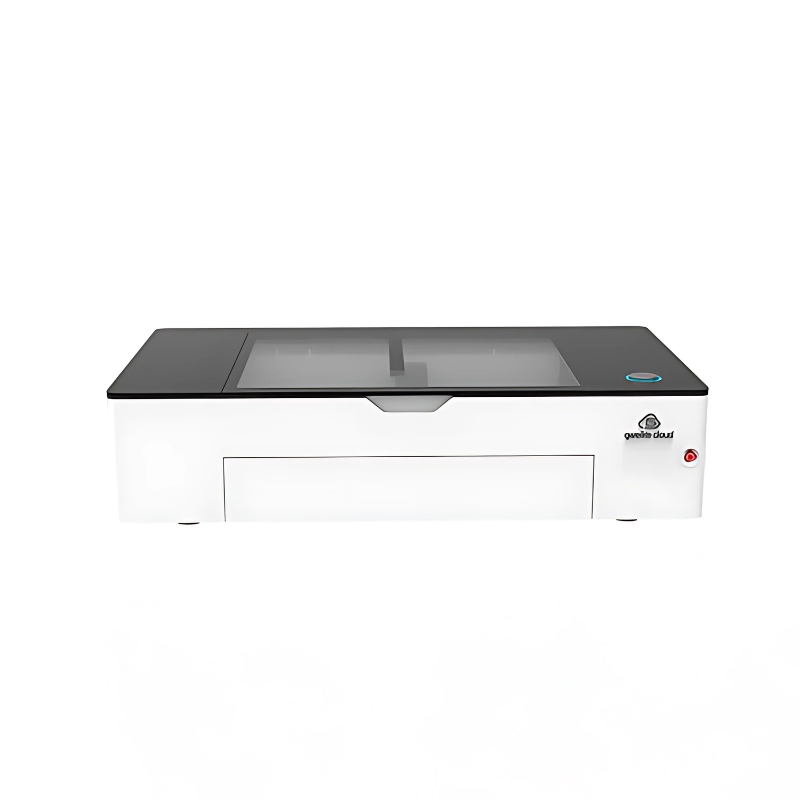

Gweike Cloud 38W RF Metal Tube Laser Cutter and Engraver with 20000 Hours Working Lifespan
Introducing the Gweike Cloud 38W RF Metal Tube Laser Cutter and Engraver, a high-precision bench-top laser machine that is built to last and work well for all of your crafting needs.
The RF (Radio Frequency) metal laser tube used in this machine can cut at a speed of 1200 mm/s and with a precision of 0.001 mm. This can easily cut and engrave a variety of materials, such as metal, leather, rubber, wood, acrylic, and more. This machine's 360° rotating engraving feature can produce more stable and accurate engraving, which makes it perfect for businesses needing a high level of precision and speed.
Investing in our powerful machine means investing in quality and reliability, so get yours now!
KEY FEATURES
6x Faster Than Others
Material : MDF
Power : 80%
Speed : 1200 mm/s
Industry Servo Motor
Using an industrial-grade servo motor, the speed can reach 2000-3000 r/min
Higher Accuracy
Working Lifespan
The metal shell of the laser tube is not easy to be damaged, and its life is 10 times that of other CO2 lasers.
360° Rotating Engraving
Live Camera Preview
Industrial Frame Design
Easy to Focus, Precise and Quick
LightBurn
Uses the industry standard layout, editing, and control software, LightBurn, to 'talk' directly to your laser without the use of additional software.
Venting System
The wind rate is significantly improved and the wind volume is larger. Easier to remove smoke and exhaust fumes. Effectively solve the gas retention caused by the production process.
Noise-cancelling
During normal printing, Gweike Cloud has an average noise level of about 70 dB(A). Equipped with a much quieter fan, the speed can be adjusted automatically according to the real-time temperature, realising a noise level decrease of about 16 dB(A)[3], so that you can truly focus on your making.
Emergency Stop & Safe for Children
Adopt a fully enclosed structural design to give users the best protection. Products are CE-certified, FCC-certified, FDA-certified; all electronic components comply with 3C standards.
TECH SPECS
| Laser System | |
| Laser Power | 38W |
| Laser Type | RF Metal Laser Tube |
| Lifespan | 20000h |
| Safety Guard | Class I (FDA Certified) |
| Work Area | |
| Work Table Area | 20.08" (510mm)*11.47" (290mm) |
| Max. Workpiece Height (without honeycomb tray) | 2" (51mm) |
| Work Table Surface | Black (Special surface finishing technique helps reduce burn marks or discoloration) |
| Materials Processing | |
| Max. Carving Speed | 1200mm/s |
| Carving Precision | 0.001mm |
| Noise Rating | ≤70dB |
| Rotary Device | |
| Rotary Engraving diameter | 10mm-180mm （with risers） |
| Rotary Engraving Length | ≤245mm |
| AI Camera Information | |
| Camera | support |
| Software Requirements | |
| Control Software | Gweikecloud Web Based,Gweikecloud Offline, Lightburn |
| Connection / Transmission | Wi-Fi, USB, Ethernet |
| Supported File Type | SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc. |
| Design Software | AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw, etc. |
| Environmental Requirement | |
| Power | AC 110-220V±10%,50-60Hz |
| Gross Power | 550W |
| Nonoperating Temperature | 0~45°C |
| Relative Humidity | 5~90°C |
| Operating Ambient Temperature | 0~35°C |
| Weight & Dimensions | |
| Machine Dimensions | 38.2"*22.2"*9.2" (970mm*565mm*234.5mm) |
| Weight | 45.6kg |
| Package | 114*73*36cm |
| Total Weight | 58kg |
| Supported Accessories | |
| 5 MP ultra-wide-angle camera wide angle & macro | √ |
| Built-in air pump | √ |
| Air Chiller | √ |
| Dual high-efficiency internal LED strips | √ |
ADVANTAGES
3D Engraving
It can engrave on spheres, tilted planes, curved surfaces and different heights object. It can create 3D images on diamonds, wood, and acrylics, etc.
Machine Bottom Feeding Design
Top and bottom compartments can be used together, allowing for a bigger work area.
Cloud Online Operation
Your Gweikecloud runs from a web browser, which means there's no software to install - ever. Drag and drop your designs right onto your material. Upgrades are instant and seamless.
Online Design Catalogue
If you don’t have professional drawing design experience or you don’t have time to design drawings, Gweikecloud provides massive materials for free download or you can purchase them online.
PACKAGE INCLUSIONS
SPARKLE YOUR CREATION WITH GWEIKE CLOUD MATERIALS
Make art out of acrylic, wood, rubber, leather, metals, and more.
Glass
Coating Metal
Plywood
Food
Rubber
Acrylic
Paper
Leather
Rock
MATERIAL CUTS AND ENGRAVES
| Material | Engrave | Cut |
| Wood | ✓ | ✓ |
| Acrylic | ✓ | ✓ |
| Fabric | ✓ | ✓ |
| Glass | ✓ | × |
| Coated Metals | ✓ | × |
| Ceramic | ✓ | × |
| Delrin | ✓ | ✓ |
| Cloth | ✓ | ✓ |
| Leather | ✓ | ✓ |
| Marble | ✓ | × |
| Matte Board | ✓ | ✓ |
| Melamine | ✓ | ✓ |
| Mother of Pearl | ✓ | ✓ |
| Paper | ✓ | ✓ |
| Mylar | ✓ | ✓ |
| Pressboard | ✓ | × |
| Rubber | ✓ | ✓ |
| Wood Veneer | ✓ | ✓ |
| Fibreglass | ✓ | ✓ |
| Painted Metals | ✓ | × |
| Tile | ✓ | × |
| Plastic | ✓ | ✓ |
| Cork | ✓ | ✓ |
| Corian | ✓ | ✓ |
| Anodized Aluminium | ✓ | ✓ |
GWEIKE CLOUD VS GLOWFORGE
| gweike cloud RF | Glowforge | |
| Engraving Speed | 1200mm/s | 200mm/s(Pro) |
| Working Area | 510mm*290mm | 495mm x 279mm |
| Rotary Support | Yes | No |
| Software | Lightburn, Offline software | Glowforge Web base |
| Laser Power | 38W | 40W(Basic/Plus), 45W (Pro) |
| Self-defined Material | Yes | No |
| Emergency Stop Switch | Yes | No |
| USB Port Support | Yes | No |
| Inline Duct fan | Yes | No |
| After-sale Support | 7*24 online service | Appointment only, by email |
| Warranty Time | 12 month | 12 months, 6 months(Basic) |
