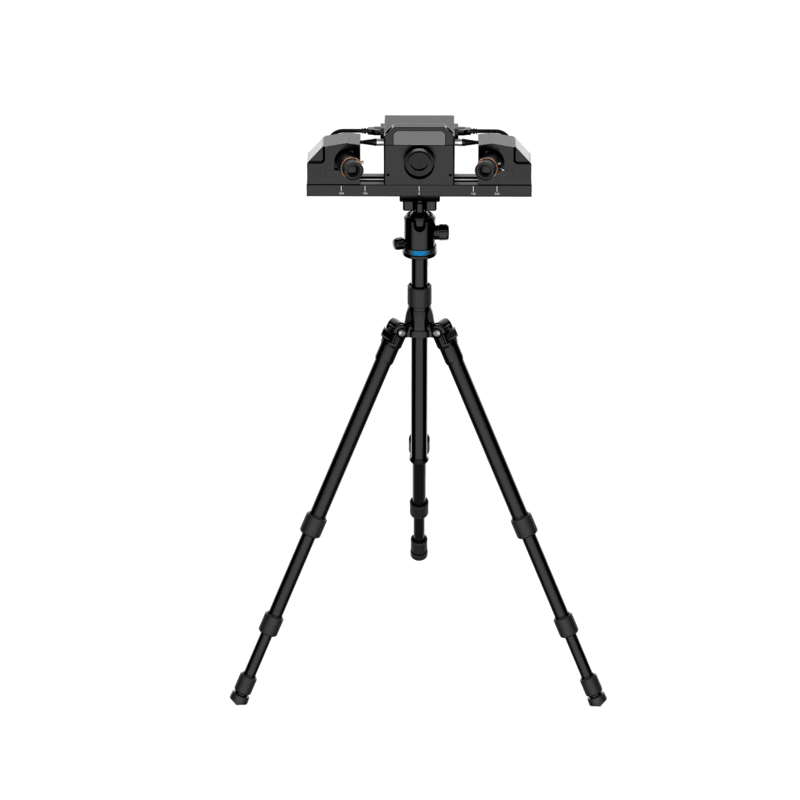

Shining 3D Transcan C Mounted Scanner with Multi-Resolution Fusion and High Fidelity Color

Transcan C is a professional-grade 3D scanner, capturing exceptionally high resolution and accurate scans of objects of a broad range of sizes. The professional 12 Megapixel cameras produce rich and detailed colorful 3D models, authentically generating a digital replica of an object.

Key Features :

• High-Accuracy Scan Data

The compact design scanner produces high accuracy of 0.035mm at its inner position, and of 0.05mm at its outer position. These results are valuable to many applications for measurement.

• Dual Scan Range Ready-to-Use

The slide-rail design allows for the scanning range to switch between 150mm x 96mm and 300mmx 190mm to meet variable objects sizes.

• High Fidelity Color

Two 12 MP color cameras are installed to capture a detailed 24-bit color map, representing a true-color of the physical object. It gives an ideal solution to visual display.

• Micro Details Reproduction

The minimum point distance can reach 0.0375mm (resolution) to reproduce fine details on the surface in its inner position of 150mm x 96mm.

• Multi-Resolution Fusion

The algorithm of multi-resolution fusion allows a mixture of 3 levels of resolution of high, med or low in one project for complex scanning tasks, which highly improves efficiency without duplication of work.

Key Features Overview :

• High accuracy scan data – 0.035 mm ~ 0.05 mm
• Dual scan range – easily switch between 150 mm x 96 mm and 300 mm x 190 mm size
• Two 12 MP colour cameras for detailed 24-bit colour mapping
• Resolution – 0.0375 mm point distance
• Free Resolution Choice in one project - High or Low Resolution
• Fully automatic turntable with stitching algorithm
