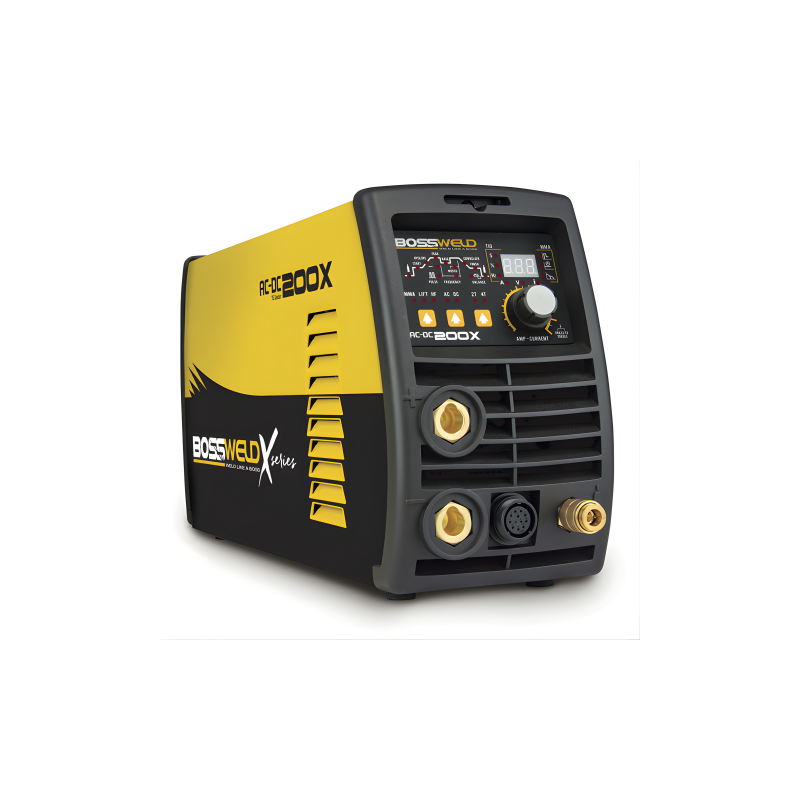

bossweld ac/dc 200x tig and stick welder from front view

Bossweld AC/DC 200X TIG & Stick Welder with IGBT Technology

by Bossweld
$1,967.94

Excludes GST

Notify me when back in stock

Bossweld X-Series

AC-DC TIG Welder 200X

The Bossweld 200X AC/DC TIG Welder utilises the latest in IGBT welder technology and is designed with the professional TIG welder in mind. You have the ability to adjust all aspects of the weld cycle. Being an AC/DC, you can TIG weld aluminium, making this welder the ideal choice for any tradesperson or maintenance technician.

TIG

  • Gives a better weld finish
  • Accurate heat control
  • Considered the most challenging process to learn
  • Good way to weld thin material
  • Argon gas is required

METAL TYPES: Mild Steel, Stainless Steel & Aluminium

STICK

  • Easiest process to learn
  • Best for quick repairs
  • Slower than MIG welding
  • Forgiving in dirty/rusty environments
  • Not recommended for thin sheet metal welding

METAL TYPES: Mild Steel, Stainless Steel & Cast Iron

15 Amp

Up to 10 mm

Aluminium, Mild Steel, Stainless Steel, Brass , Cast Iron

3.2 mm Tungsten

8 kVA

  • AC/DC TIG and DC Stick welder
  • IGBT welder technology
  • Full weld cycle adjustments
  • 3 year limited warranty
  • Machine only weighs 7 kg
MANUAL SPECIFICATIONS TORCH SPARES

Key Features

  • 200 Amp output
  • High frequency arc start
  • Fitted 15 Amp plug
  • Simple to operate

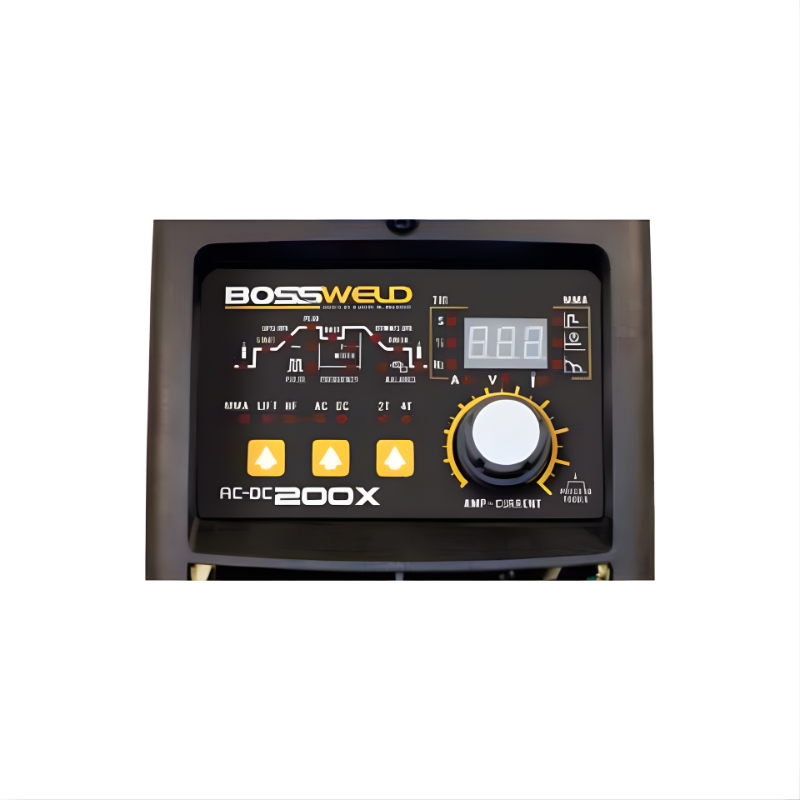

  • Digital LED display
  • Foot control ready
  • Adjustable pulse
  • Pre and post gas adjustment
  • AC balance adjustment
  • 2T / 4T trigger latching
  • Lightweight and portable
  • IGBT inverter technology

Specifications

Primary Input power
Single Phase
240V 50-60
HZ +/-15%
Duty Cycle @ 40˚C
25% @ 200A
60% @ 125A
100% @ 100A
Open Circuit Voltage
52V
Output Current Range
TIG~AC
10-200Amps
TIG~DC
10-170Amps
I Max
TIG 30.5A
MMA 39.7A
I eff
15A
Protection/Insulation Class
IP21 / H
Tungsten Diameter Range
1.0mm
to
3.2mm
Thermal Overload
Yes
Minimum KVA
8.0
Dimensions/Weight
48x24x14cm
/ 7kg

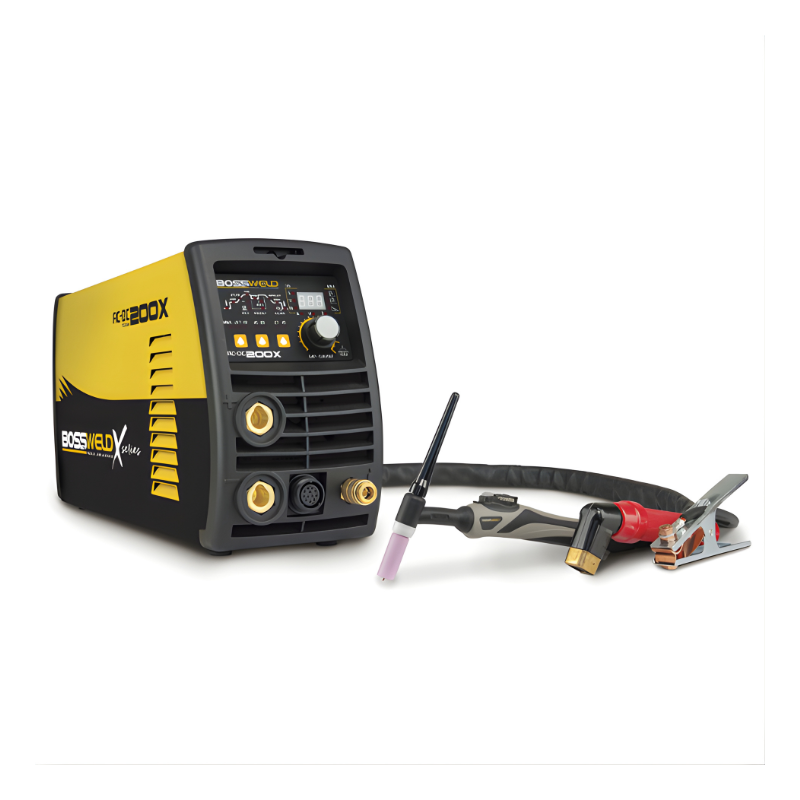

Standard Inclusions

  1. AC/DC 200X Inverter TIG / MMA Welder
  2. 4m 26 Series TIG Torch
  3. Electrode Holder Lead
  4. Welding Earth Lead
  5. Gas Hose
  6. Carry Strap
  7. Dual Stage Argon Regulator
  8. Torch Spares (not shown)
  9. Owner's Manual (not shown)
Description

Bossweld X-Series

AC-DC TIG Welder 200X

The Bossweld 200X AC/DC TIG Welder utilises the latest in IGBT welder technology and is designed with the professional TIG welder in mind. You have the ability to adjust all aspects of the weld cycle. Being an AC/DC, you can TIG weld aluminium, making this welder the ideal choice for any tradesperson or maintenance technician.

TIG

  • Gives a better weld finish
  • Accurate heat control
  • Considered the most challenging process to learn
  • Good way to weld thin material
  • Argon gas is required

METAL TYPES: Mild Steel, Stainless Steel & Aluminium

STICK

  • Easiest process to learn
  • Best for quick repairs
  • Slower than MIG welding
  • Forgiving in dirty/rusty environments
  • Not recommended for thin sheet metal welding

METAL TYPES: Mild Steel, Stainless Steel & Cast Iron

15 Amp

Up to 10 mm

Aluminium, Mild Steel, Stainless Steel, Brass , Cast Iron

3.2 mm Tungsten

8 kVA

  • AC/DC TIG and DC Stick welder
  • IGBT welder technology
  • Full weld cycle adjustments
  • 3 year limited warranty
  • Machine only weighs 7 kg
MANUAL SPECIFICATIONS TORCH SPARES

Key Features
  • 200 Amp output
  • High frequency arc start
  • Fitted 15 Amp plug
  • Simple to operate
  • Digital LED display
  • Foot control ready
  • Adjustable pulse
  • Pre and post gas adjustment
  • AC balance adjustment
  • 2T / 4T trigger latching
  • Lightweight and portable
  • IGBT inverter technology

Specifications

 Primary Input power Single Phase
240V 50-60
HZ +/-15% Duty Cycle @ 40˚C 25% @ 200A
60% @ 125A
100% @ 100A Open Circuit Voltage 52V Output Current Range TIG~AC
10-200Amps
TIG~DC
10-170Amps I Max TIG 30.5A
MMA 39.7A I eff 15A Protection/Insulation Class IP21 / H Tungsten Diameter Range 1.0mm
to
3.2mm Thermal Overload Yes Minimum KVA 8.0 Dimensions/Weight 48x24x14cm
/ 7kg

Standard Inclusions
  1. AC/DC 200X Inverter TIG / MMA Welder
  2. 4m 26 Series TIG Torch
  3. Electrode Holder Lead
  4. Welding Earth Lead
  5. Gas Hose
  6. Carry Strap
  7. Dual Stage Argon Regulator
  8. Torch Spares (not shown)
  9. Owner's Manual (not shown)
