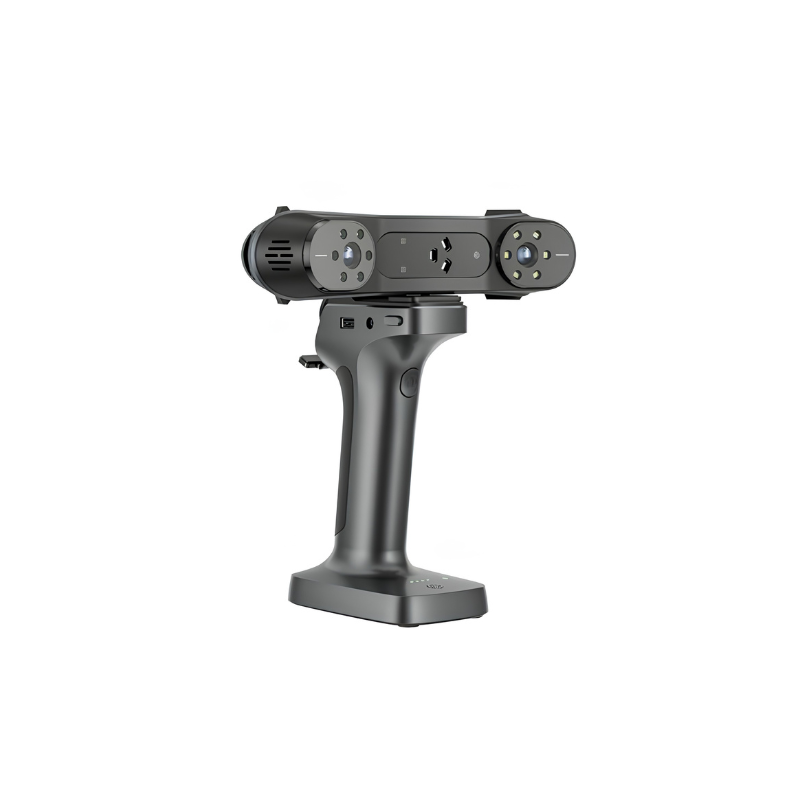

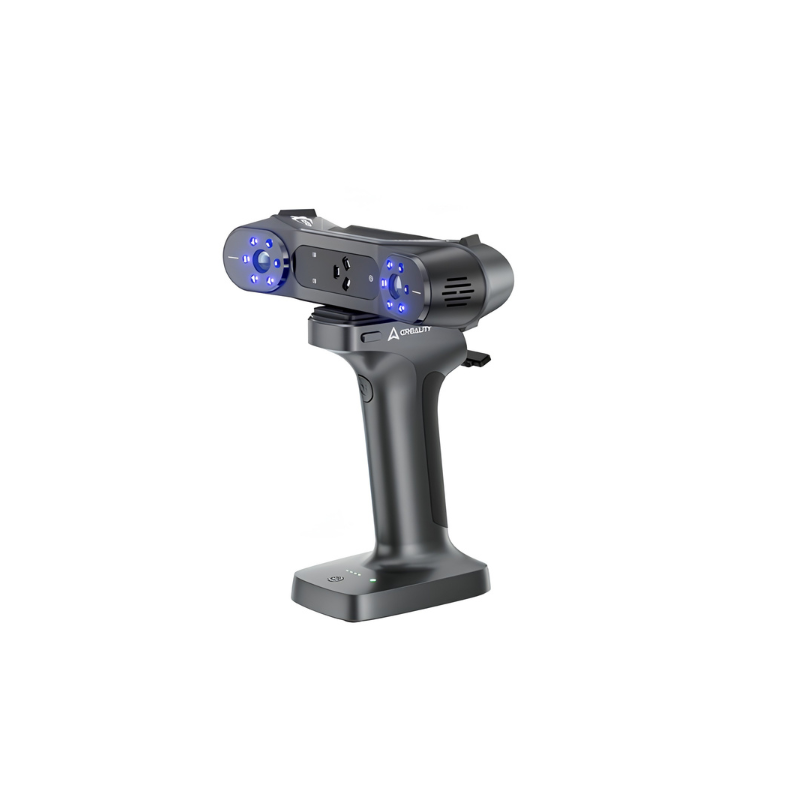

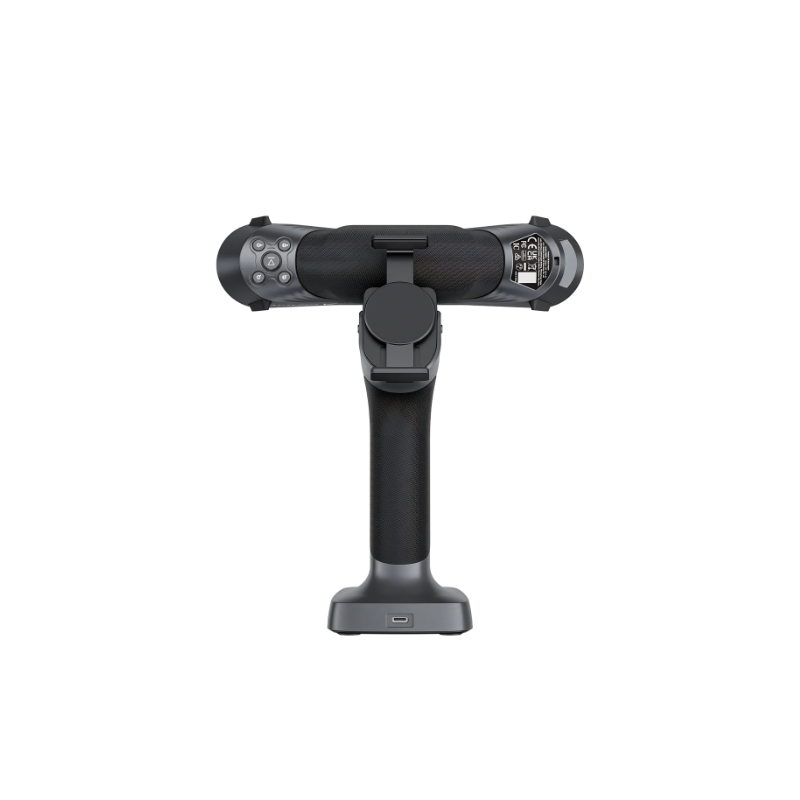

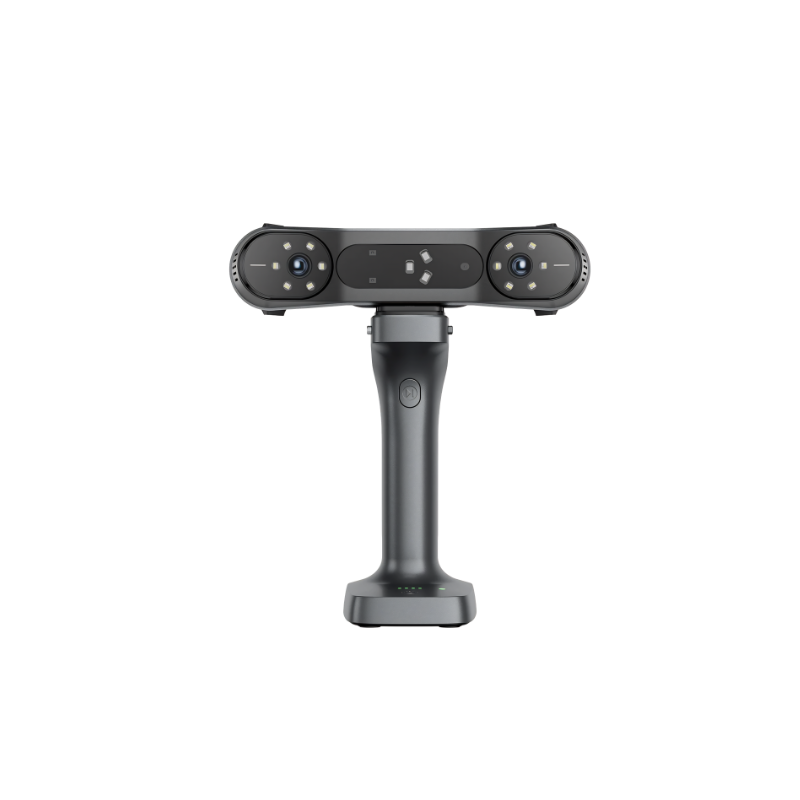

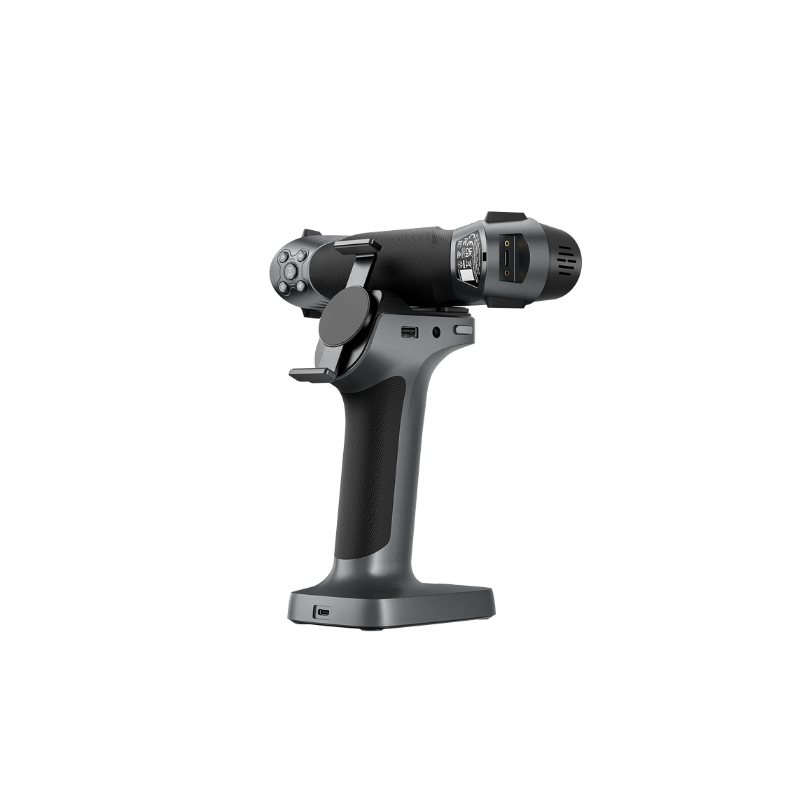

Creality CR-Scan RaptorX 3D Scanner with 0.02mm Precision & Marker-Free Scanning
Excludes GST
Turn Physical Parts and Objects Into Precise 3D Files
Most 3D scanners require reflective markers placed across an object's surface to maintain positional reference during capture — a process that adds setup time and limits where and how you can scan. The CR-Scan RaptorX removes this dependency by combining near-infrared and structured light technology with an AI-powered alignment engine that continuously calculates positional reference from the object's own geometry. This is why the scanner can move freely around an object and still build a coherent, accurately aligned model without manual correction.
The dual-light approach is also why the scanner performs reliably on surfaces that defeat single-technology systems. Near-infrared penetrates dark materials that absorb standard light, while structured light reads surface geometry across reflective finishes — together they give the sensor enough data to lock onto surfaces that would otherwise produce incomplete or distorted scans.
At 0.02mm accuracy and 0.05mm resolution, the RaptorX captures detail at a level fine enough for engineering comparison, reverse engineering, and precision modelling work — not just visual reference. Three scanning modes — handheld, turntable, and tripod — exist because different object sizes and scanning conditions require different capture strategies. Having all three in a single portable unit means you are not compromising scan quality to suit the equipment you have available.
Workflow Advantages
- Triple-Mode Scanning — Gives you the confidence to take on a wider range of projects knowing you have the right capture method for any object size or environment.
- Marker-Free Operation — Frees you from tedious setup steps so you can focus entirely on the work rather than the preparation around it.
- AI-Powered Alignment — Lets you produce clean, professional scan data without needing specialist scanning experience to achieve reliable results.
- 0.02mm Accuracy — Enables you to deliver output precise enough for engineering, manufacturing, and client-facing work without questioning whether your data will hold up.
- Reflective and Dark Surface Compatibility — Means you can accept any brief with confidence, knowing challenging materials won't limit what you're able to capture.
- Portable Form Factor — Gives you the freedom to work on-site, in the field, or across multiple locations without sacrificing the quality of your results.
- Included Turntable and Tripod — Means you're fully operational from day one, without sourcing additional accessories before your first scan.
- Clean Mesh Output — Allows you to move directly from scan to production, eliminating the rework stage that interrupts momentum between capture and delivery.
Why Kyro Machines Recommends Creality
Creality is one of the more widely recognised names in consumer and prosumer 3D fabrication, with an established global distribution network and a product range that spans entry-level through to professional scanning and printing equipment. The CR-Scan RaptorX sits within their professional scanning lineup, built to a specification level that positions it for engineering, design, and production applications rather than casual use.
At Kyro Machines, we supply equipment we are confident recommending for real business use. Our range is selective — we list machines based on their capability, build quality, and fit for the workflows our customers are actually running. We are Australian-based, and our team is available to support you after purchase with technical guidance, workflow advice, and setup assistance.
Key Features
- Three scanning modes — Handheld, turntable, and tripod modes supported in a single unit
- Scan accuracy — Captures geometry to 0.02mm accuracy with 0.05mm point resolution
- Marker-free scanning — Operates without reflective stickers or manual reference points
- Surface compatibility — Scans reflective, dark, and textured surfaces using near-infrared and structured light
- AI scan processing — Automatically aligns and optimises scan data during capture
- Portable design — Compact unit with folding tripod included for use across different locations
- OS compatibility — Windows 10/11 supported; macOS not fully supported
- Complete kit — Ships with turntable, folding tripod, and AU plug power supply
Technical Specifications
View Full Specifications
Scanner Unit
- SKU: TL5704
- Length: 120mm
- Width: 30mm
- Height: 26mm
- Weight: 105kg
Performance
- Accuracy: 0.02mm
- Resolution: 0.05mm
- Scanning modes: Handheld, turntable, tripod
- Surface compatibility: Reflective, dark, textured
- Scanning technology: Near-infrared and structured light
- Marker requirement: None
Compatibility
- OS: Windows 10/11
- macOS: Not fully supported — check software requirements before purchase
In the Box
- CR-Scan RaptorX scanner unit
- Folding tripod
- Turntable
- AU plug power supply
Other
- Contains button cell: No
- Availability: Stocked item
Warranty and Returns
This product is backed by the manufacturer’s warranty. Kyro Machines provides further support and guidance to help troubleshoot any issues and assist with the warranty process where required.
Due to the nature of specialised equipment, returns are handled in accordance with our Returns & Warranty Policy. If you’re unsure whether this machine is the right fit, we recommend contacting us before purchasing so we can help you make an informed decision.
If this fits your workflow and gives you the capability to produce the results you’re aiming for, add it to your cart to get started.
If you need help choosing the right machine for your workflow or use case, contact us and we’ll help you find the right solution.
