Gweike Cloud 38W RF Laser Cutter & Engraver with 1200mm/s Speed & 0.001mm Precision
Excludes GST
Take Your Work From Hobby-Grade to Production-Ready
Most machines capable of cutting metal are too loud, too hot, or too fume-heavy to run anywhere but a dedicated industrial space — this machine solves that problem at the source rather than working around it.

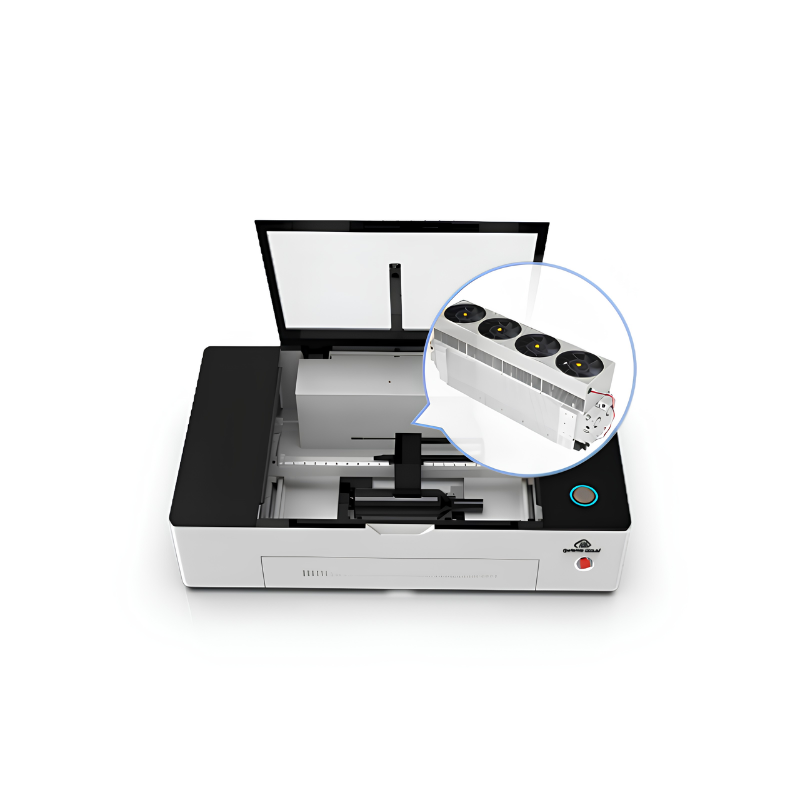

The RF metal laser tube is the key. Unlike a standard CO₂ tube, it generates a more stable, higher-quality beam and is rated to last up to ten times longer, which is why the machine can sustain the power needed for metal without the frequent maintenance or downtime that usually comes with it.
That stable beam is held to a tight 0.07 mm spot size by an industrial-grade servo motor running at 2000–3000 r/min. This precision is what allows the same machine to move between fine detail engraving and clean metal cutting without a loss of quality in either.
Heat and fumes are the other reason metal-capable lasers usually can't run indoors, so the system pairs a built-in air chiller with an automatic, temperature-responsive exhaust fan. The chiller keeps the laser tube performing consistently under sustained use, while the fan only works as hard as it needs to — which is how the whole unit stays at or below 70 dB.
All of this is enclosed in an industrial frame, which is what makes it possible to bring genuinely industrial cutting power into a home workshop or small commercial space without compromising on safety or noise. The result is a machine where the production-grade outcome isn't despite the environment it's designed for — it's built into how the machine works.
Workflow Advantages
- RF Metal Laser Tube — Take on metal, coated materials and dense timber with confidence, knowing the tube is built for extended, reliable service life.
- 5MP Camera with Pattern Extraction — Work directly from a physical object's surface, removing a design step and speeding up custom or one-off jobs.
- Rotary Attachment (10–180 mm) — Bring bottles, tumblers and cylindrical stock into your product range without needing a separate machine.
- Fully Enclosed, Low-Noise Design (≤70 dB) — Run the machine during business hours in a home or shared workspace without disrupting the people around you.
- Automatic Fume Extraction and Fan Adjustment — Focus on the job at hand, not on manually managing ventilation or air quality.
- 0.07mm Laser Spot with 0.001mm Carving Precision — Deliver fine detail work that holds up under close inspection, on jewellery, signage or intricate engraving.
- 3D Engraving on Curved and Tilted Surfaces — Take on uneven or irregular objects as standard jobs, not exceptions.
- Emergency Stop and Child-Safe Design — Operate with the peace of mind that comes from a machine built with safety as standard, not an add-on.
- LightBurn and Cloud Software Compatibility — Fit the machine into an existing workflow, or manage jobs remotely without being tied to the workshop.
Why Kyro Machines Recommends Gweike Cloud
Gweike is a recognised manufacturer of laser cutting and engraving systems, with the RF metal laser tube used in this unit reflecting a broader industry shift toward longer-life, lower-maintenance laser sources. Every machine in the Kyro Machines range is selected on the basis of build quality, reliability and real-world capability. Backed by Australian-based after-sales support, Kyro Machines is positioned to assist with setup, troubleshooting and servicing, so you are supported well beyond the point of purchase.
Key Features
- RF metal laser tube, rated for a longer service life than standard CO₂ tubes
- Fully enclosed housing with automatic, temperature-based fan speed control
- Built-in air chiller, air compressor and exhaust fan, each rated ≤70 dB
- 5 MP camera for design preview, positioning, real-time monitoring and surface pattern extraction
- Rotary attachment for cylindrical items from 10–180 mm in diameter
- 3D engraving support on spheres, curved surfaces and tilted planes
- Industrial servo motor with a 0.07 mm laser spot size
- Compatible with LightBurn, Gweikecloud Web and Gweikecloud Offline software
Technical Specifications
View Full Specifications
Laser System
- Laser power: 38W
- Laser type: RF Metal Laser Tube
- Laser tube lifespan: 20,000 hours
- Safety guard: Class I (FDA Certified)
Work Area
- Work table area: 20.08" × 11.47" (510 mm × 290 mm)
- Honeycomb panel size: 20.08" × 11.8" (510 mm × 300 mm)
- Maximum workpiece height: 2" (51 mm) without honeycomb tray
- Work table surface: Black surface finishing technique
Performance
- Maximum carving speed: 1200 mm/s
- Carving precision: 0.001 mm
- Noise rating: ≤70 dB
- Servo motor speed: 2000–3000 r/min
- Laser spot size: 0.07 mm
Rotary Device
- Rotary engraving diameter: 10 mm–180 mm (with risers)
- Rotary engraving length: ≤245 mm
Camera System
- 5 MP ultra-wide-angle camera
- Supports wide-angle and macro positioning
- AI Camera: Support
Software and Connectivity
Control Software
- Gweikecloud Web Based
- Gweikecloud Offline
- LightBurn
Connection Methods
- Wi-Fi
- USB
- Ethernet
Supported File Types
- SVG
- DXF
- JPG
- JPEG
- PNG
- BMP
- TIF
- CR2
- etc.
Compatible Design Software
- AutoCAD
- Solidworks
- Inkscape
- CorelDRAW
- PowerPoint
- Illustrator
- Photoshop
- Google AutoDraw
Environmental Requirements
- Power input: AC 110–220V ±10%, 50–60Hz
- Gross power: 550W
- Operating ambient temperature: 0–35°C
- Non-operating temperature: 0–45°C
- Relative humidity: 5–90%
Dimensions and Weight
- Machine dimensions: 38.2" × 22.2" × 9.2" (970 mm × 565 mm × 234.5 mm)
- Machine weight: 45.6 kg
- Package dimensions: 114 × 73 × 36 cm
- Total package weight: 58 kg
Included Hardware and Accessories
- Built-in air pump
- Built-in air chiller
- Built-in exhaust fan
- Dual high-efficiency internal LED strips
- 5 MP ultra-wide-angle camera
- Honeycomb panel
- Rotary device
Included Materials Package
- Basswood ×5
- Acrylic ×5
- Cardboard ×5
Compatible Materials
- Glass
- Coating metal
- Plywood
- Food
- Rubber
- Acrylic
- Paper
- Leather
- Rock
- MDF
- Basswood
- Cardboard
- Wood
Certifications
- CE-certified
- FCC-certified
- FDA-certified
- Electronic components comply with 3C standards
Optional Add-Ons
- Extended Warranty for Gweike Cloud RF
- gweike cloud air filter bundle
- Laser Lens Pack (2.0 inches) – 50W
Warranty and Returns
This product is backed by the manufacturer’s warranty. Kyro Machines provides further support and guidance to help troubleshoot any issues and assist with the warranty process where required.
Due to the nature of specialised equipment, returns are handled in accordance with our Returns & Warranty Policy. If you’re unsure whether this machine is the right fit, we recommend contacting us before purchasing so we can help you make an informed decision.
If this fits your workflow and gives you the capability to produce the results you’re aiming for, add it to your cart to get started.
If you need help choosing the right machine for your workflow or use case, contact us and we’ll help you find the right solution.
