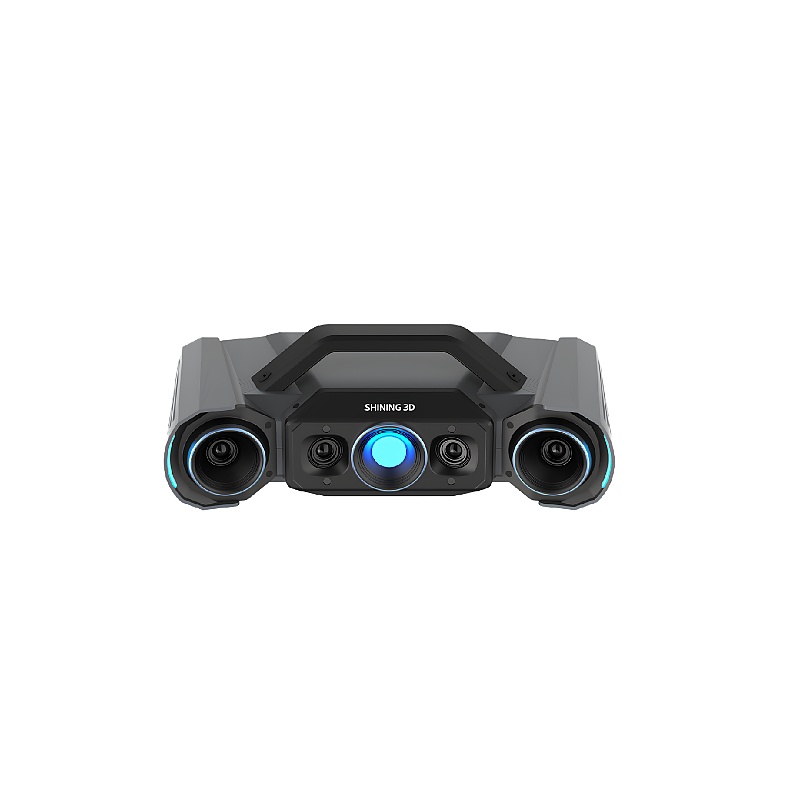

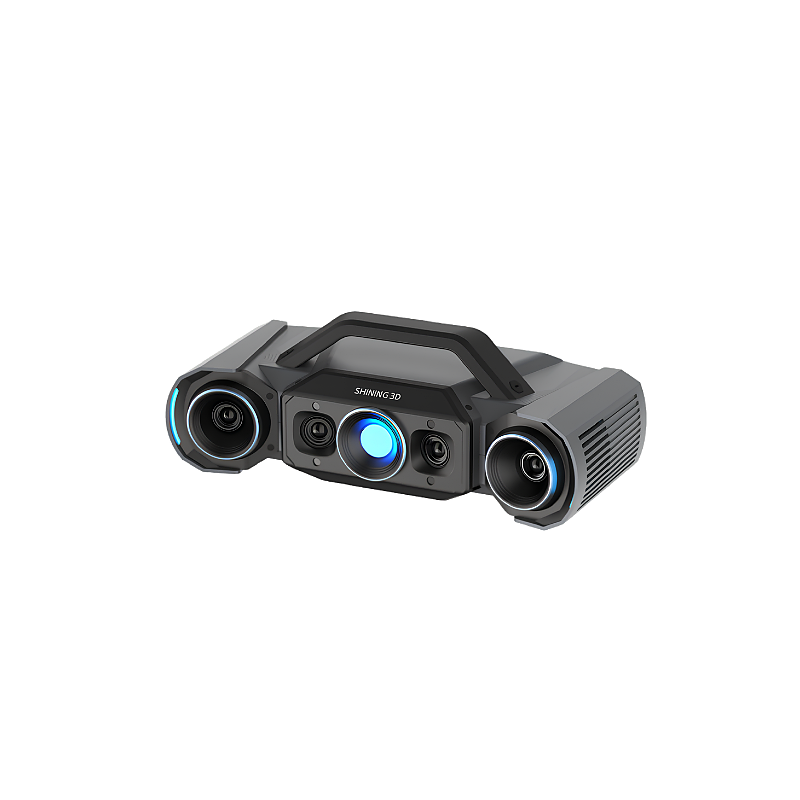

Shining 3D OptimScan Q12 3D Scanner with 0.005 mm Accuracy
Excludes GST
High-Accuracy 3D Inspection at Production Speed
Most 3D scanners rely on a single stereo camera pair, which means edge detail, sharp corners, and recessed geometry are often the first things lost in the point cloud. The OptimScan Q12 addresses this directly with Monocular-Stereo Fusion (MSF) — a hybrid imaging architecture that combines stereo depth calculation with monocular coverage, so the scanner maintains data integrity across surface transitions that would otherwise produce gaps or noise. Four 12.3 MP cameras work in concert to capture approximately 12 million points per shot, delivering the kind of surface density required to measure fine features reliably rather than approximate them.
At 0.005 mm accuracy, the system is built to the tolerance levels common in aerospace, automotive, and medical device inspection — where a measurement that is close enough is not acceptable. Two scan ranges — 430 × 300 mm for larger assemblies and 160 × 110 mm for fine detail — switch with a single click and merge seamlessly in software, which means the scanner adapts to the part rather than the other way around. Intelligent automatic exposure adjusts to surface finish variation without manual intervention, keeping capture consistent across mixed-material or mixed-finish components.
The result is a measurement workflow where speed and accuracy are not a trade-off — each shot completes in under one second, making high-volume inspection viable without compromising the data quality that audit and compliance processes require.
BACKORDER ITEM:
This product is currently on backorder. Estimated lead times may vary depending on incoming supplier stock.
Workflow Advantages
- Monocular-Stereo Fusion (MSF) — You can present scan data from complex geometry with confidence, knowing edge detail and sharp transitions are captured accurately rather than approximated.
- 0.005 mm accuracy — Working to the tolerance levels that aerospace, automotive, and medical device standards demand means you're not qualifying results with caveats when it matters most.
- Four 12.3 MP cameras — The volume and density of data captured per shot means you're measuring what's actually there, not filling in gaps with interpolated geometry.
- Sub-one-second capture speed — Inspection no longer becomes the bottleneck in your production schedule, giving you the throughput to keep pace with manufacturing output.
- One-click scan range switching — Moving between a large assembly and a fine-detail component feels seamless, so your attention stays on the work rather than the equipment.
- Intelligent automatic exposure — Mixed-finish and multi-material components scan consistently without manual reconfiguration, removing a common source of operator variability from your results.
- Robot integration support — Integrating the Q12 into an automated inspection cell means you can scale measurement capacity without scaling headcount, making high-volume QC operationally sustainable.
- End-to-end workflow (scan → analysis → report) — Delivering a complete, traceable inspection report from within a single software environment means audit preparation is built into the process, not added on at the end.
- Semi-automatic scanning with turntable — Consistent, guided scan coverage on parts up to 20 kg gives structured results without requiring a fully automated cell, making professional-grade inspection accessible at any facility scale.
Why Kyro Machines Recommends Shining 3D
Shining3D is a dedicated metrology and 3D scanning brand with an established track record in industrial applications across precision manufacturing sectors. Their equipment is used in quality control and inspection workflows in aerospace, automotive, and medical device manufacturing — industries where measurement accuracy is a compliance requirement and equipment is selected on demonstrated performance, not marketing claims.
At Kyro Machines, we take a selective approach to the equipment we carry. We evaluate products for real-world reliability, capability, and suitability.
Key Features
- 4 × 12.3 MP cameras; approximately 12 million points captured per scan shot
- Accuracy up to 0.005 mm
- Two scan ranges: 430 × 300 mm and 160 × 110 mm; one-click switching; data merges seamlessly in software
- Monocular-Stereo Fusion (MSF) for improved edge and corner coverage
- Each scan shot captured in under one second
- Multiple exposure modes including intelligent automatic exposure
- Three scanning modes: manual handheld, semi-automatic with tripod and turntable (up to 20 kg), and robot integration
- End-to-end software workflow: scanning, analysis, and report generation
Technical Specifications
View Full Specifications
Measurement Performance
- Accuracy Up to 0.005 mm
Camera System
- Cameras 4 × 12.3 MP
Scan Ranges
- Large range 430 × 300 mm
- Small range 160 × 110 mm
- Scan range switching One-click
Data Capture
- Points per capture Approximately 12 million
- Capture speed Each shot in less than 1 second
Exposure
- Modes Multiple exposure modes with intelligent automatic exposure
Scanning Modes
- Manual scanning Handheld
- Semi-automatic scanning With tripod and turntable
- Automated inspection With robot integration
Hardware
- Turntable load capacity Up to 20 kg
Software & Workflow
- Workflow Scanning → Analysis → Report generation
- Data processing Data from both scan ranges merges seamlessly in software
