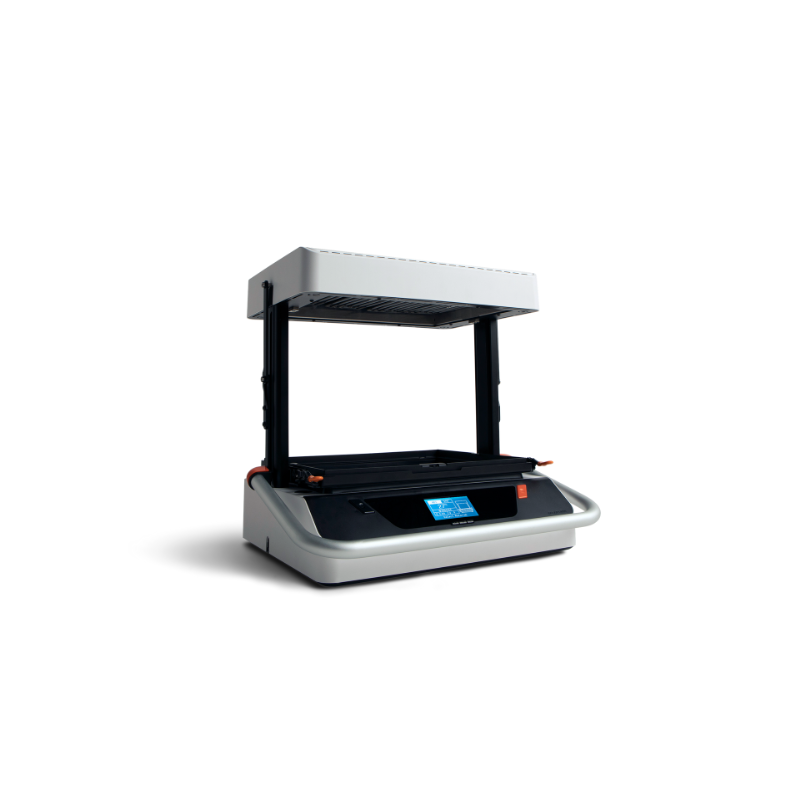

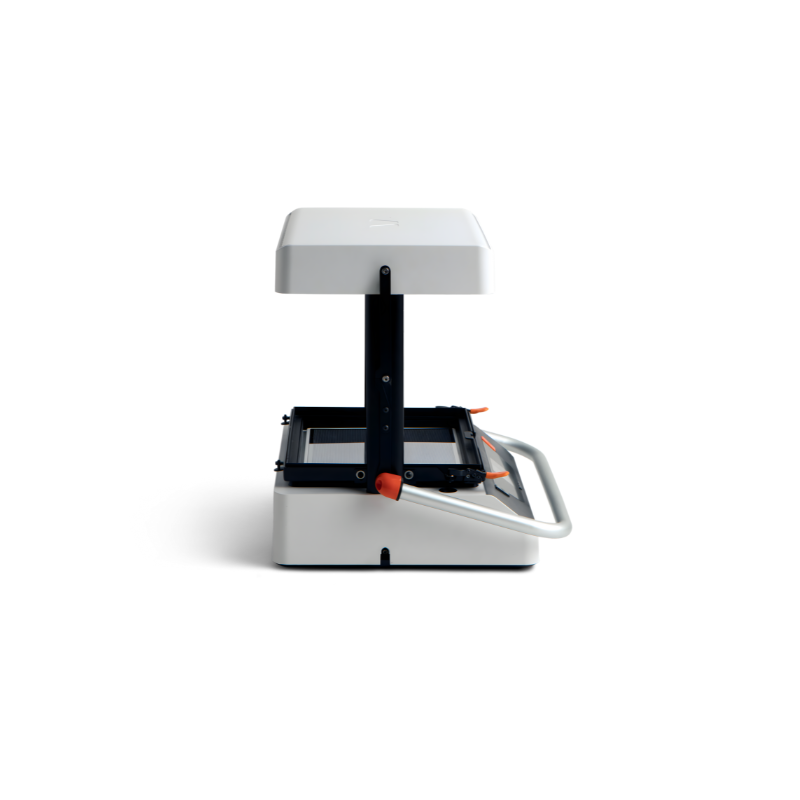

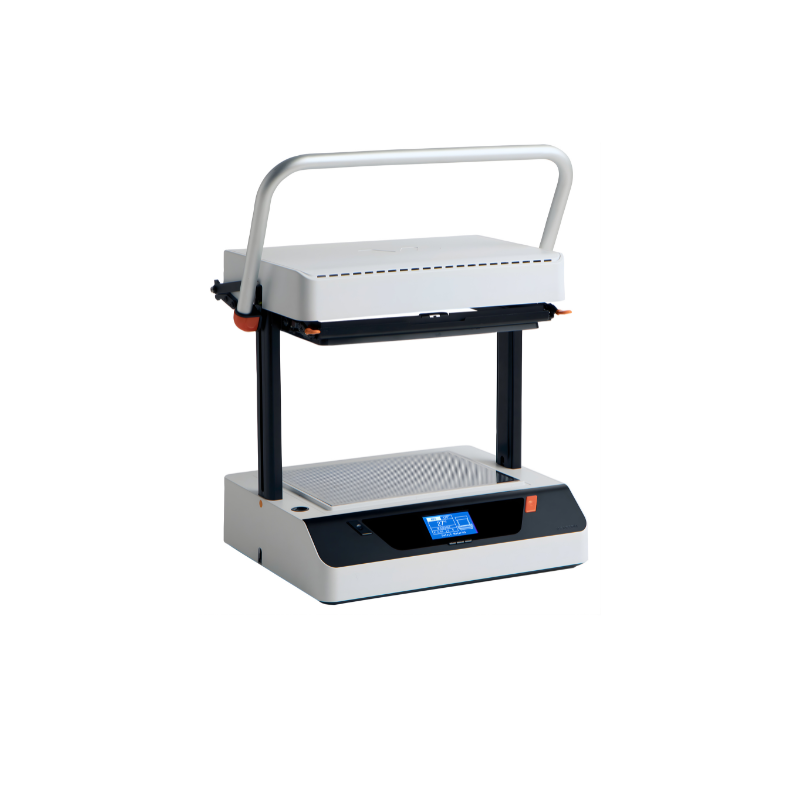

Vaquform DT2 Vacuum Forming Machine with Smart Heating & -85 kPa Suction
by Vaquform
$2,520.00
Excludes GST
Vaquform DT2
The World's First Digital Desktop Vacuum Former

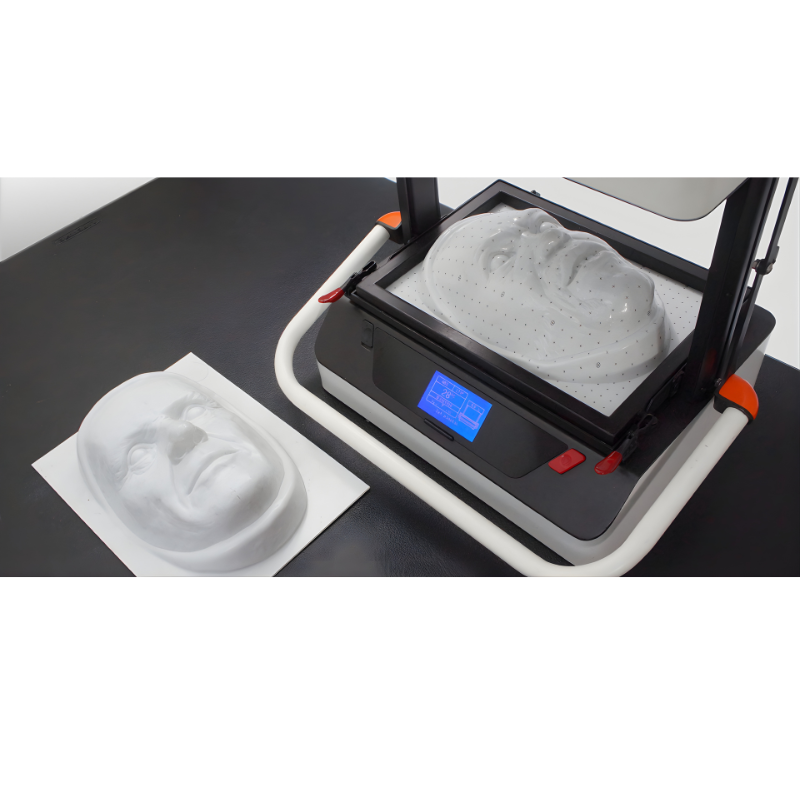

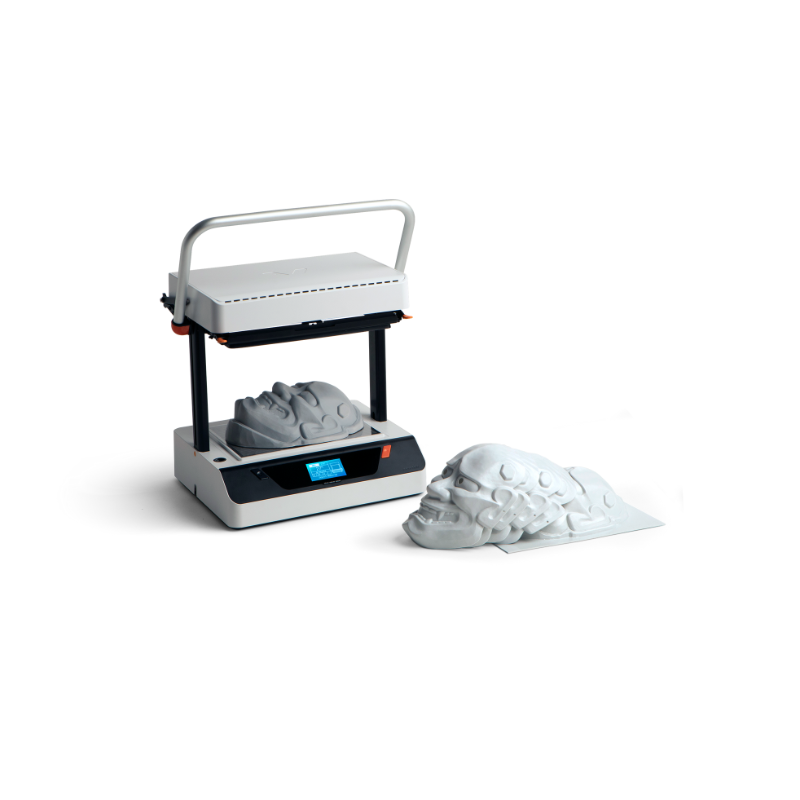

Vaquform is a manually operated vacuum forming machine that can produce industrial-grade plastic mouldings while being compact enough to fit on a desktop.
Get creative!

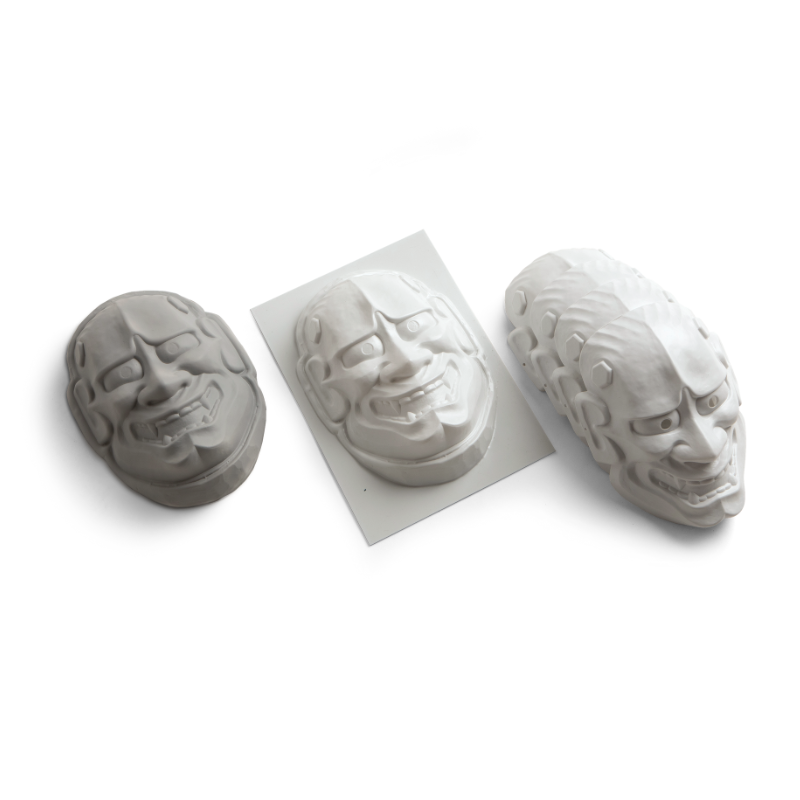

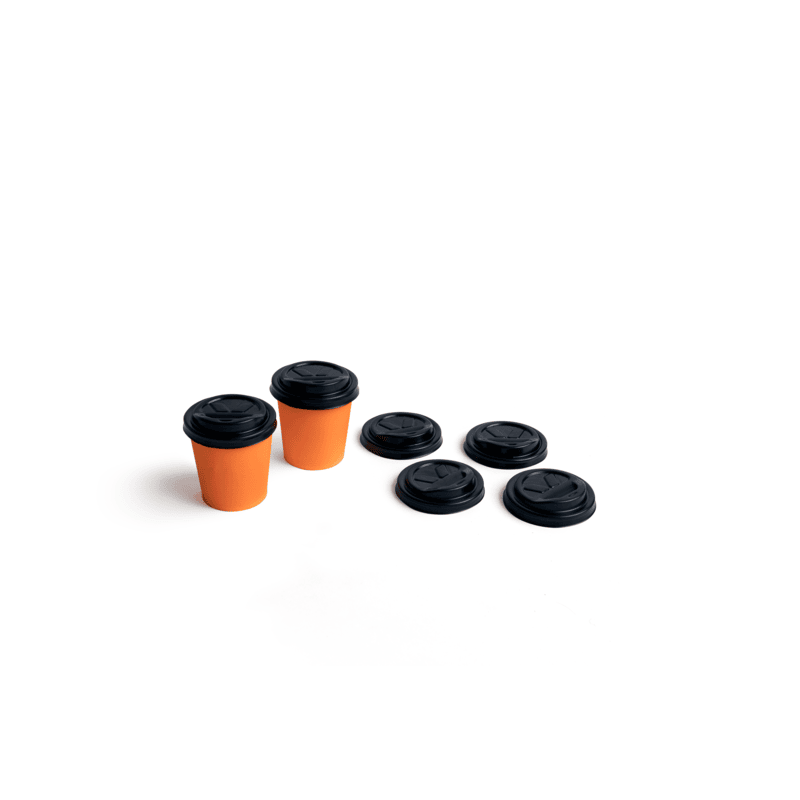

Create vacuum form designs from your 3D printer, a potato, cardboard, play-doh or everyday objects.
Take your designs to new height.
From pouring chocolate to pouring wax or even cement, duplicate your designs with ease and start up a mini factory of your own.
NO vacuum cleaner required!
- This machine is the first of its kind to provide a user interface that is similar to what you might find in your smart appliances.
- The powerful ceramic heaters allow you to prepare the plastic sheet in a few minutes, while the built-in hybrid vacuum gives high accuracy and mould detail each production cycle.
- Vaquform can form 0.30mm to 3.00mm plastic sheets (330mm x 250mm) with a maximum draw height of 200mm. This device works for any electrical supply between 100V to 240V AC.
Key Features
Built-In Hybrid Vacuum
A patent-pending system that combines high airflow and vacuum, speed and power.
Easy to Use
The built-in process controls and ergonomic design make forming effortless.
Automatic Heating

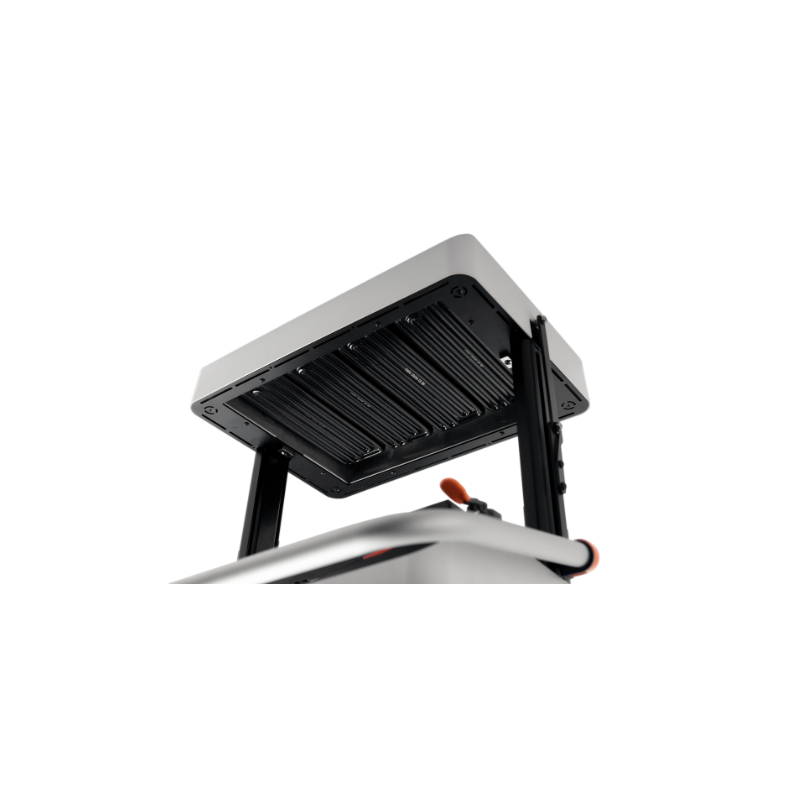

Regulated by sensors, the industrial grade ceramic heaters ensure consistent and safe heating of plastic sheets.
Precise Controls
Customise the temperature (up to 1o) and vacuum power needed for each pull.
Technical Specifications
Sheet Size
330 mm x 250 mm
Maximum Sheet Thickness
3.0 mm
Minimum Sheet Thickness
0.2 mm
Forming Area
280 mm x 200 mm
Maximum Depth Draw
200 mm
Overall Width
400 mm
Overall Height
405 mm
Overall Depth
335 mm
Weight
9 kg
Standard Input Voltage
100 V – 240 V
Standard Frequency
50, 60 Hz
Standard Wattage
1.32 kW
Noise Level
65 dB
